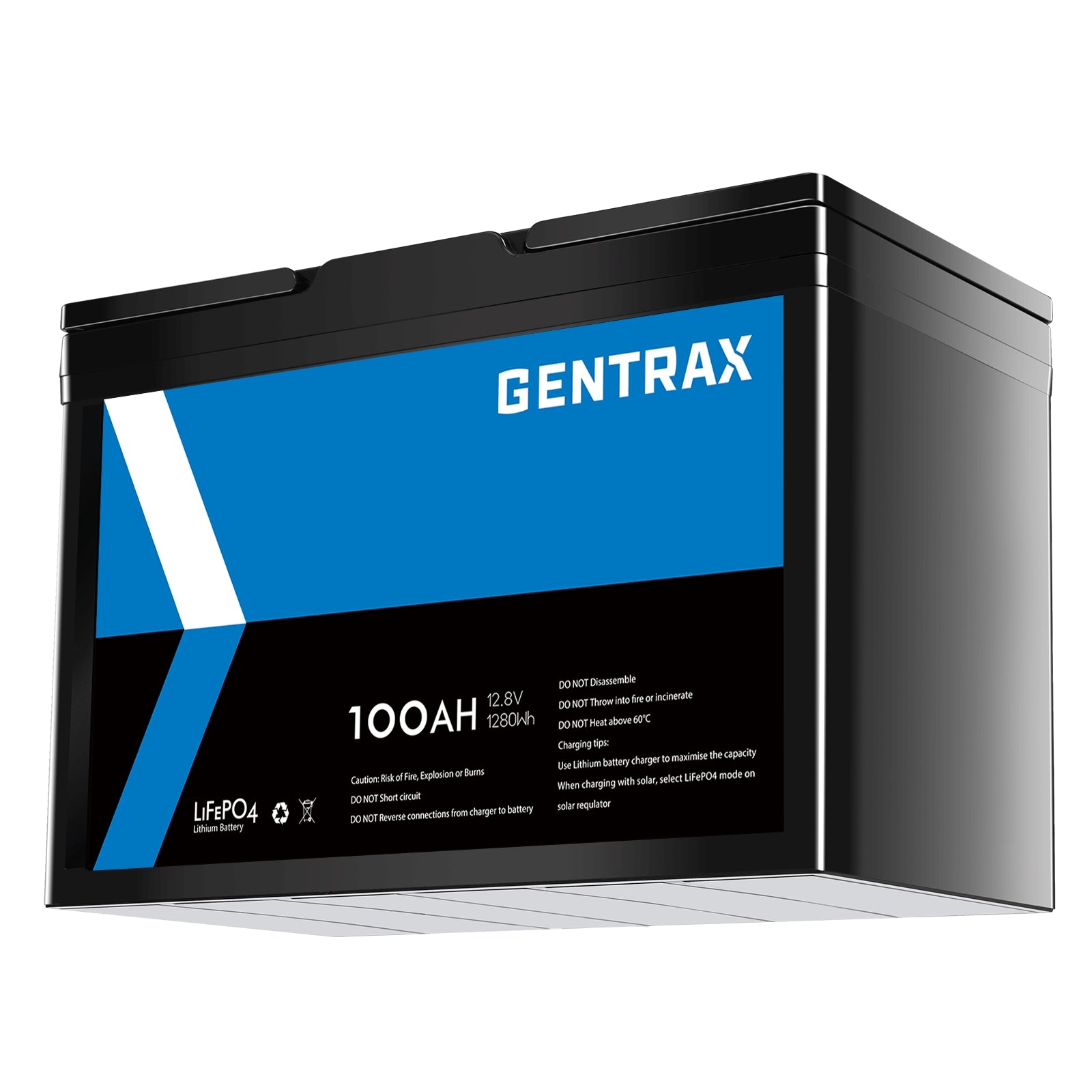

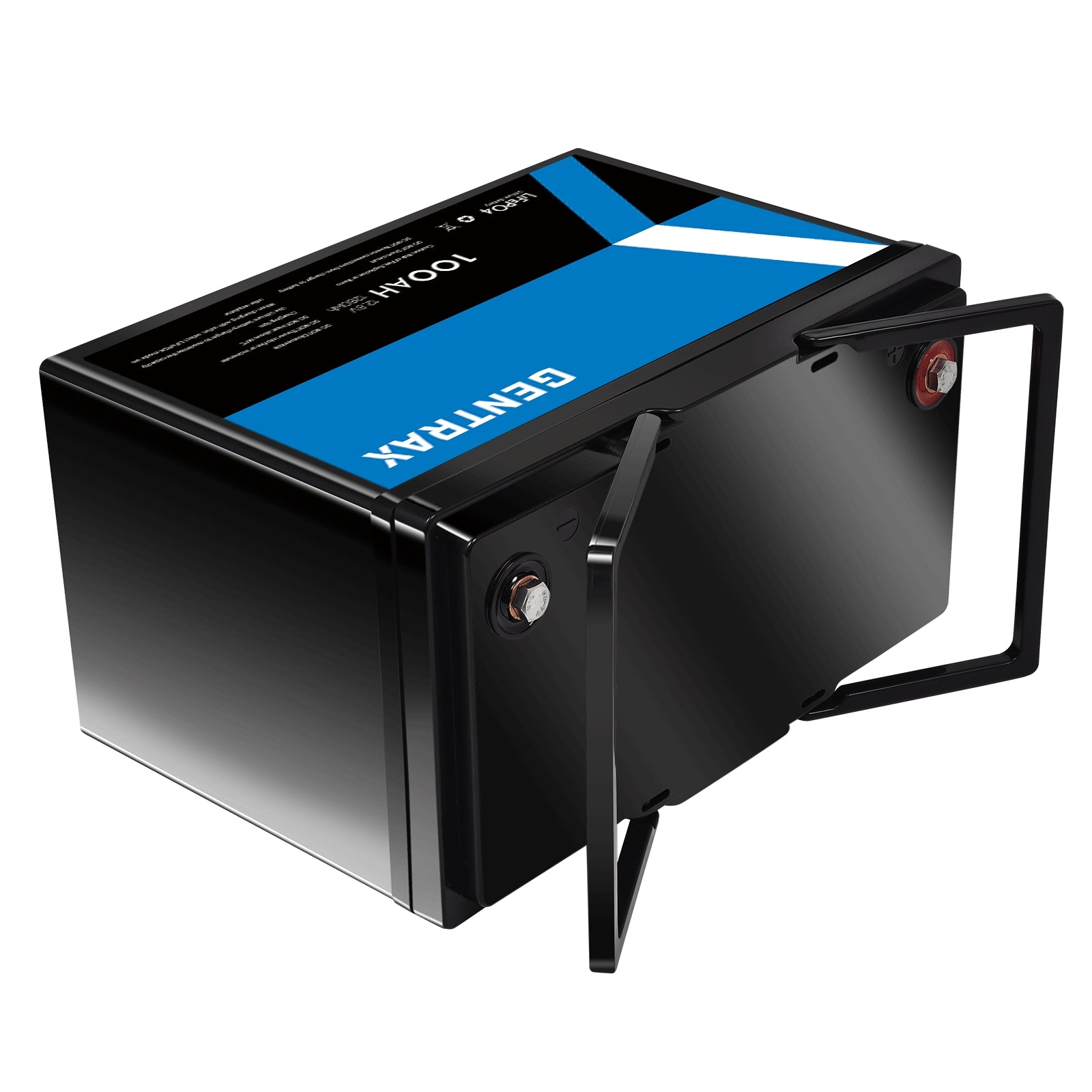

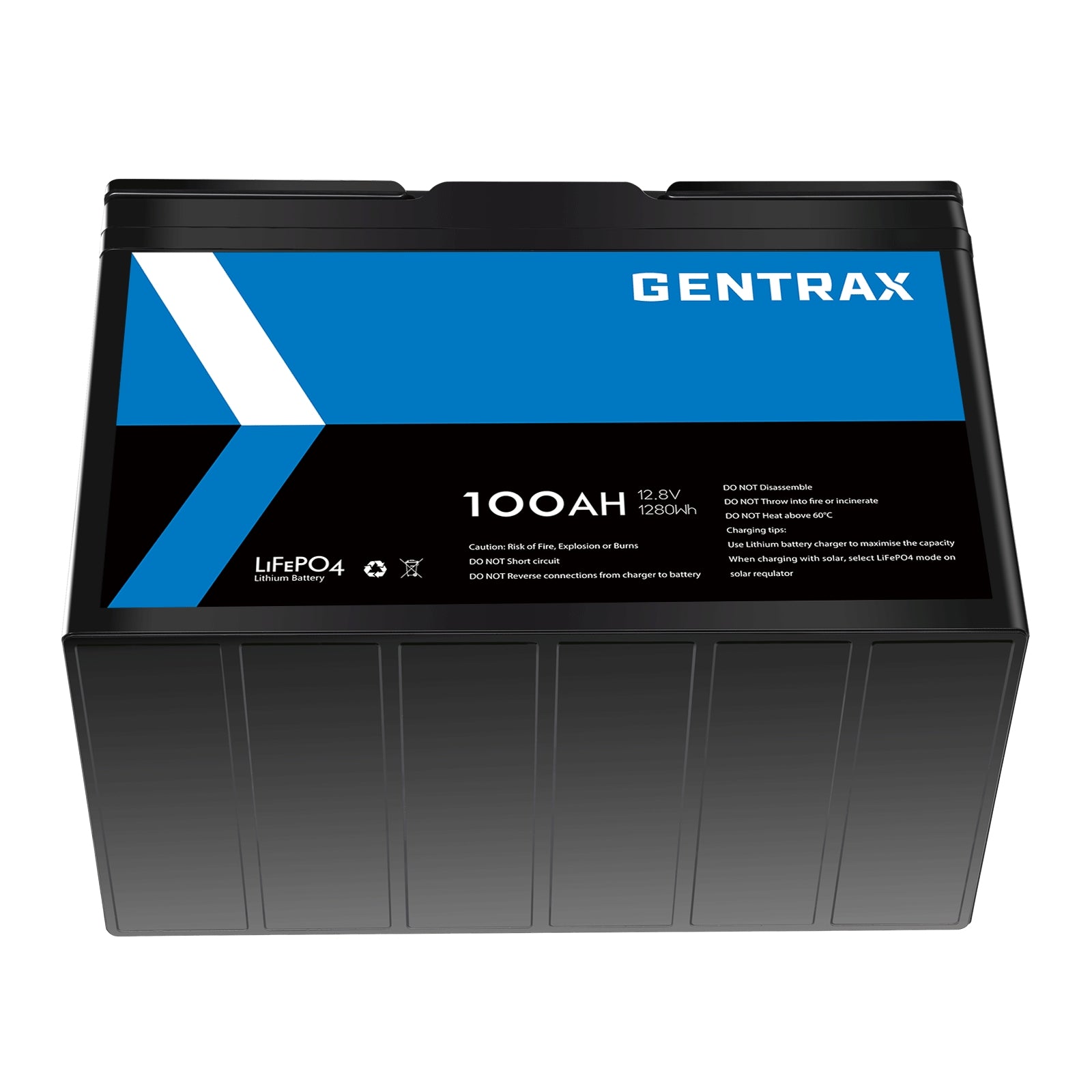

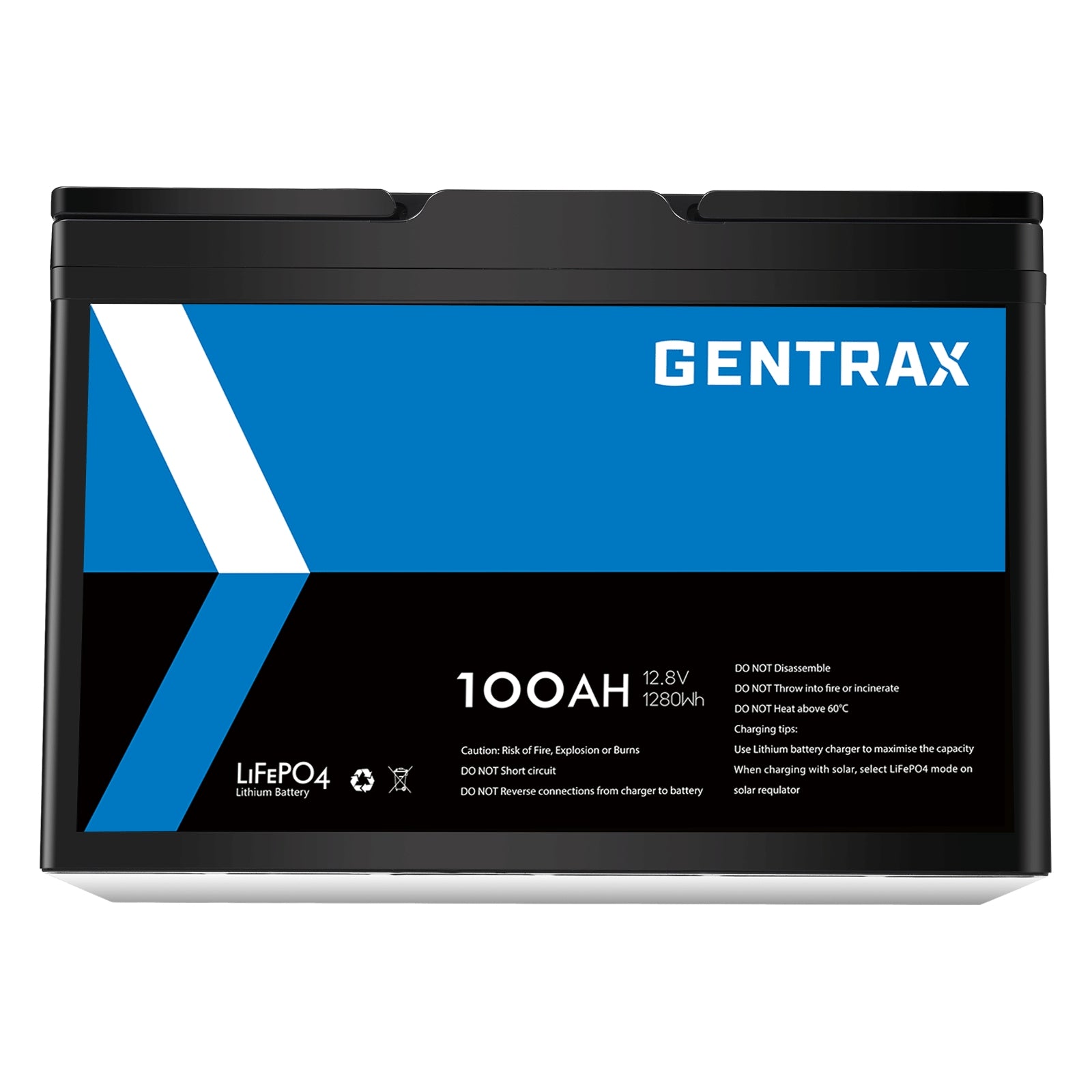

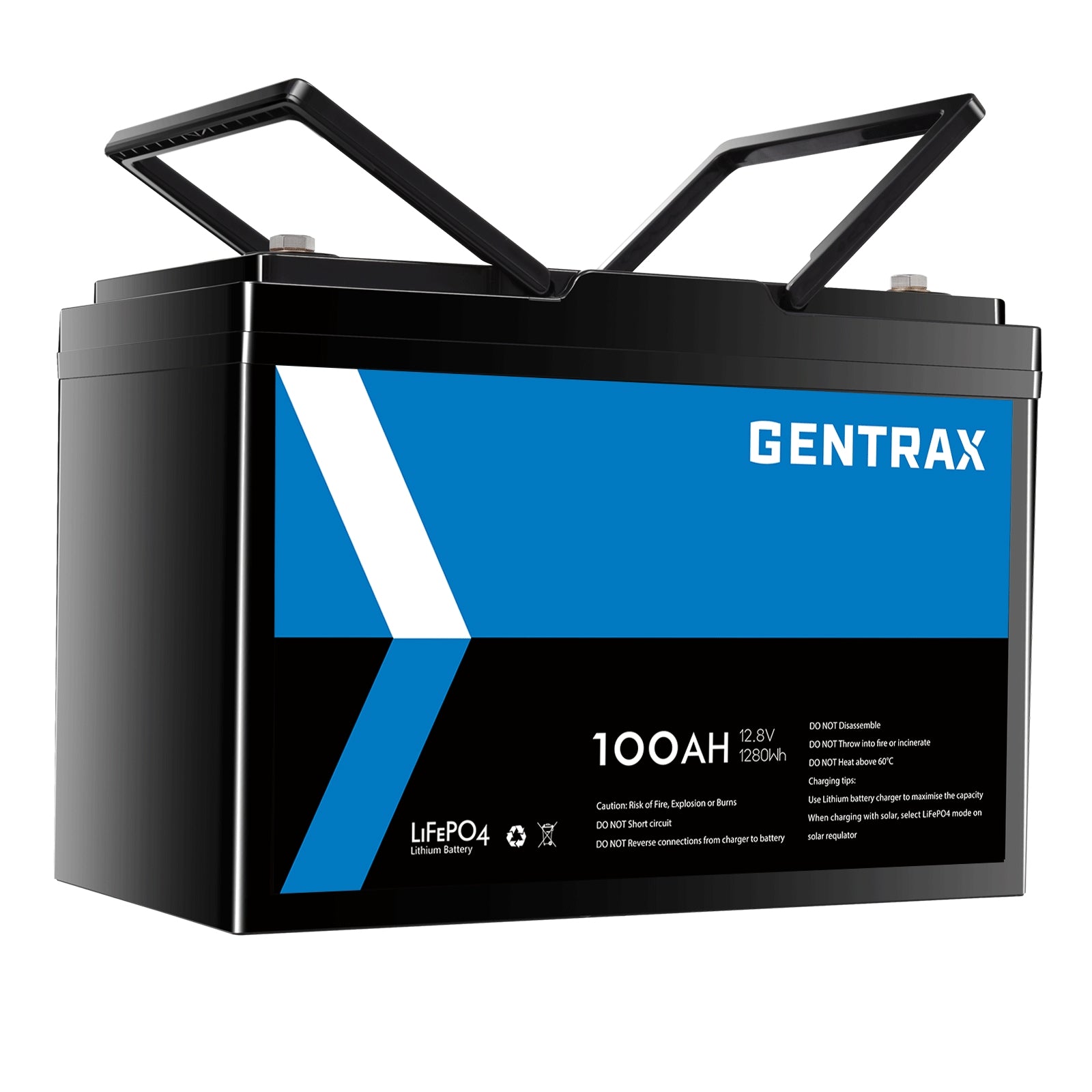

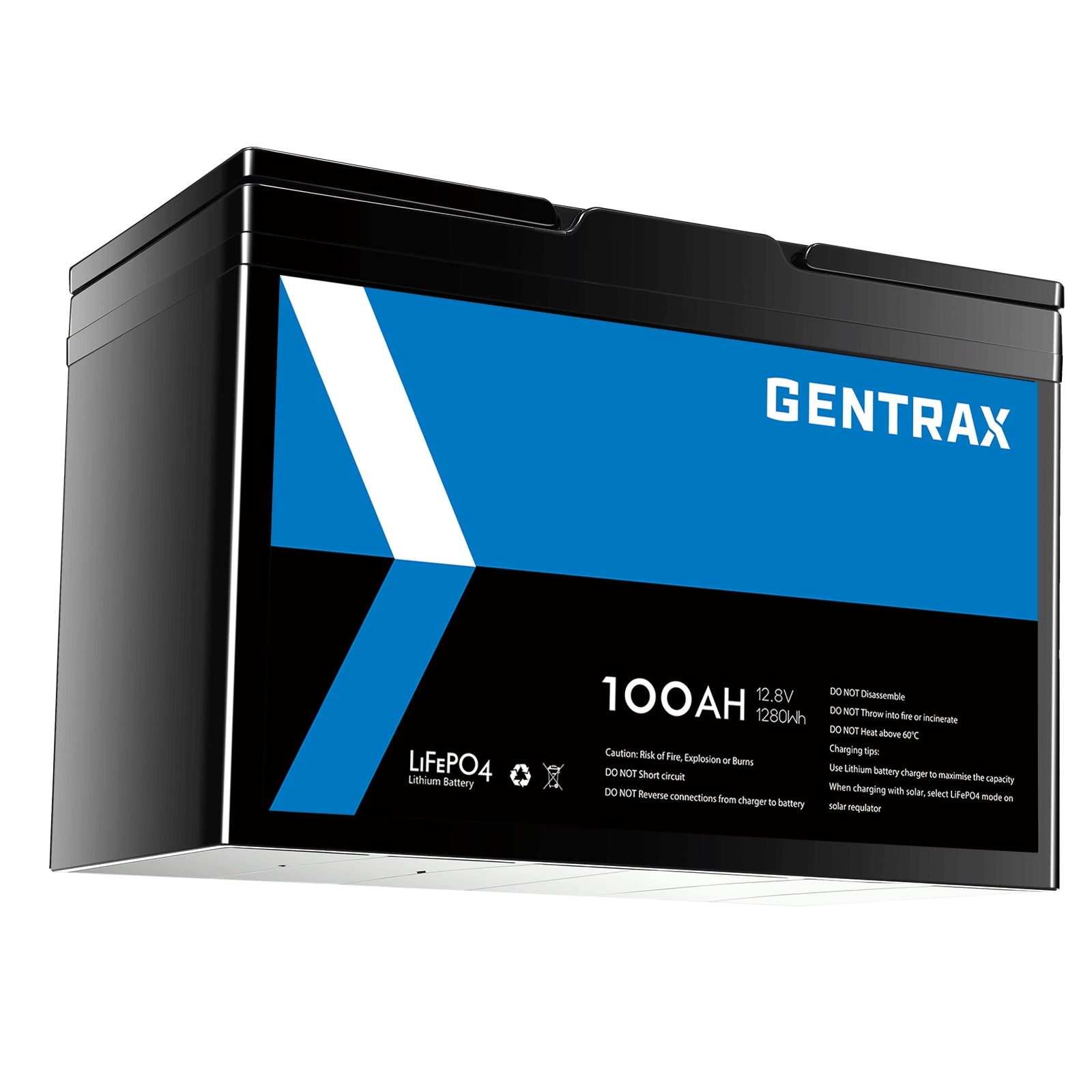

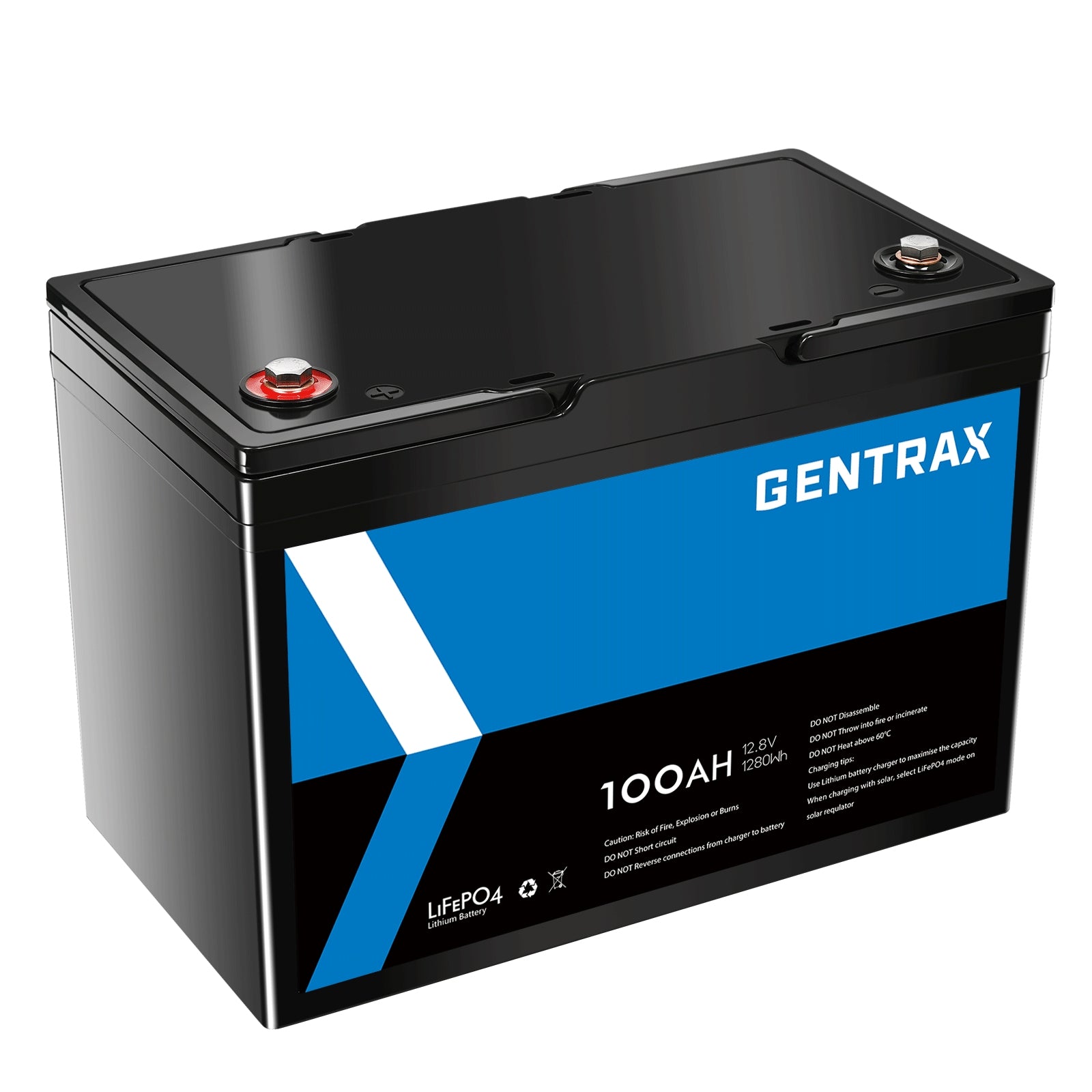

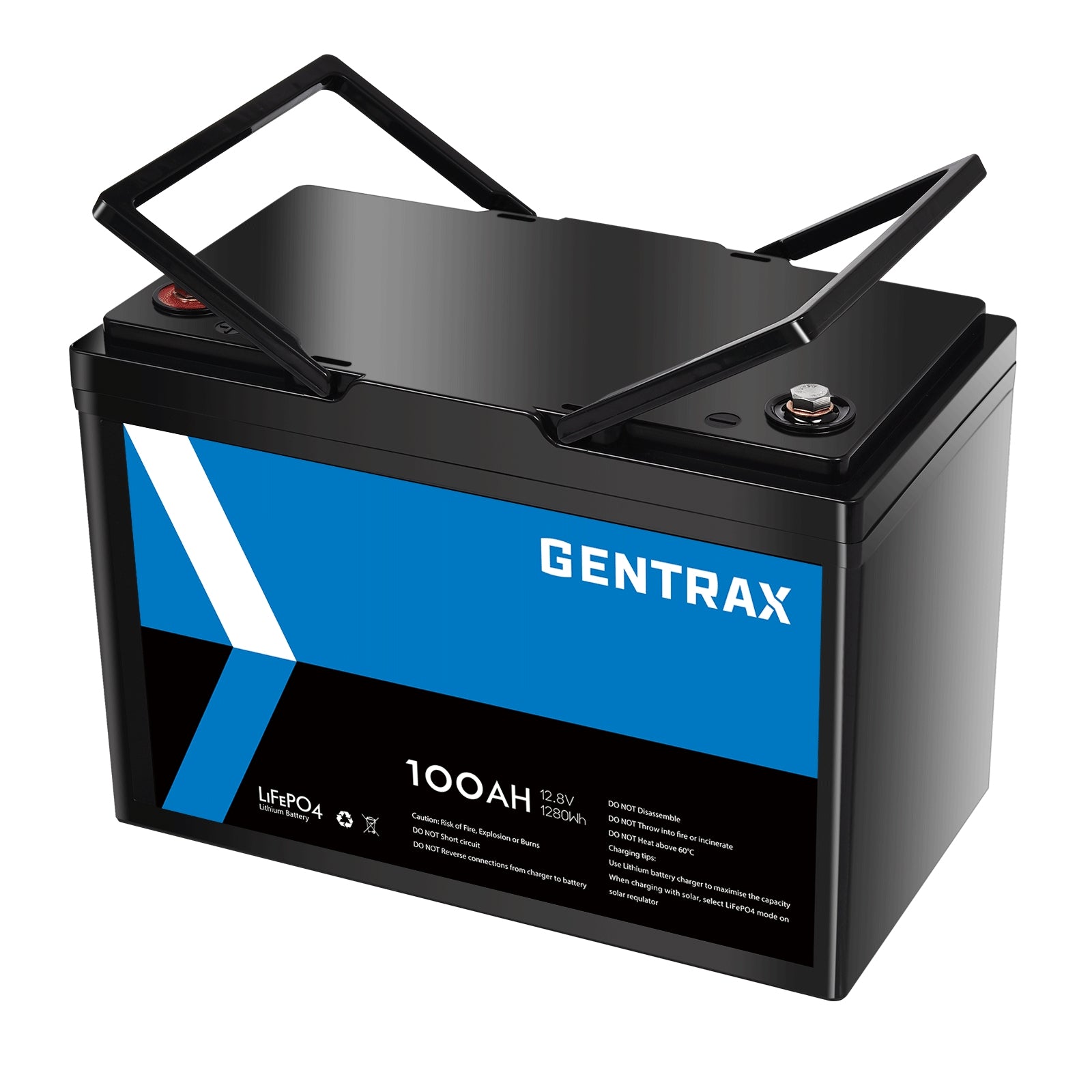

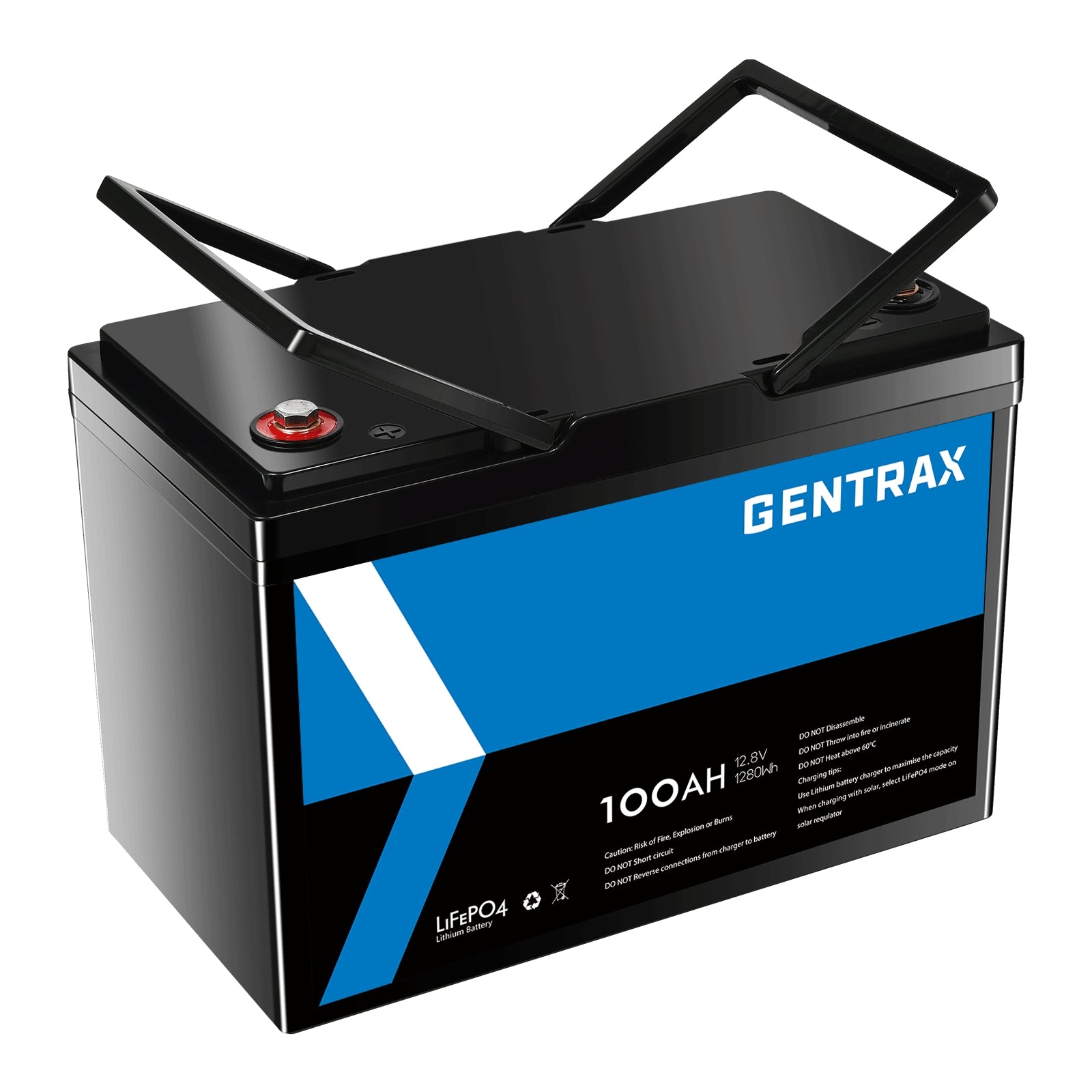

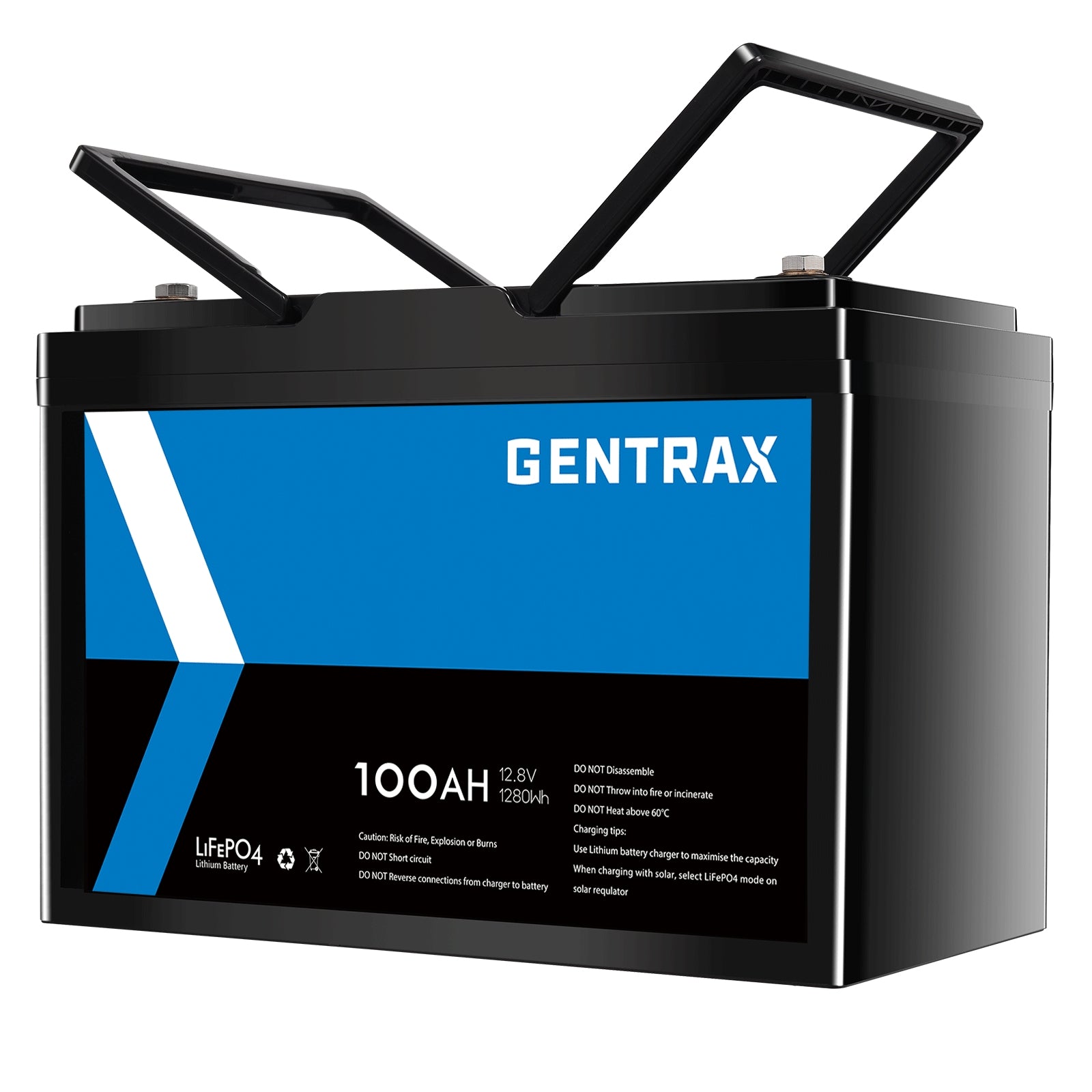

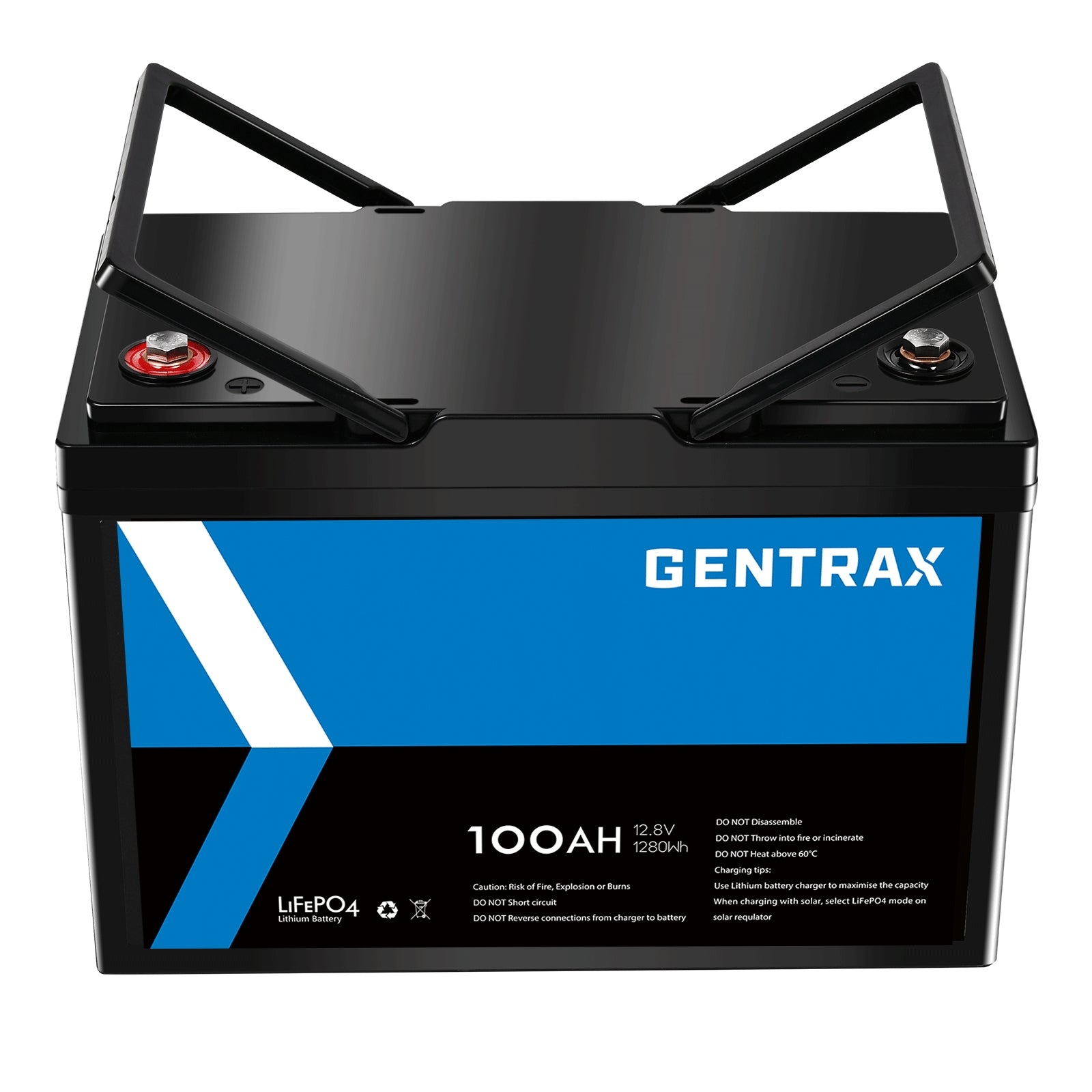

Gentrax 12V 100Ah LiFePO4 Battery
About
Introducing our Gentrax LiFePO4 Battery. Designed for high performance and long-lasting stability, our new line of power packs is the perfect companion for all your outdoor and household power needs.
Big energy in a compact size
Make the most out of your battery power with 100% real capacity. Our LiFePO4 battery pack is significantly smaller and lighter but packs every bit of power for maximum use. It’s your best pick for setups with limited spaces!
Diverse applications, unlimited possibilities
Whether you’re camping or have to deal with a power outage, our Gentrax Battery is well-equipped to keep your essential appliances running for hours. This provides you with an easy source of power for a variety of applications.
Revolutionise your energy experience
Our lithium iron phosphate batteries are tested for stability and consistency. Delivering maximum efficiency with every use, it’s suited both for high-load working conditions or long-term stable power supply requirements.
Safety first, always
Safety has always been a top priority for our power packs. Our Gentrax LiFePO4 battery utilises advanced battery technology and meets all industry standards for utmost user safety. This also translates to a reduced risk of overheating and burning, perfect for both newbie and seasoned battery users.
Boost your battery performance with the Victron charger
Every great battery needs an equally great charger. Pair our Gentrax LiFePo4 battery with the Victron Smart Charger for optimal charging and easy monitoring. It has an exclusive APP you can use as well, which allows you to see the battery capacity in real time and track its operating status.
IMPORTANT: While our LiFePO4 batteries are top-notch & can be wired with other batteries of its kind, it is not advisable to connect any LiFePO4 batteries in parallel or series. This poses several risks and should only be done in emergency situations. If you must wire batteries together, make sure you are familiar with the correct procedure or seek help from a professional if needed.
Suggestions From the Outbax Team:
- Batteries connected in series should have the same amp-hour rating while batteries in parallel bank should have the same voltage rating.
- As much as possible, only connect batteries in series or parallel during emergency situations.
- It's better to go for batteries with higher voltage when running high-power electrical appliances instead of wiring two battery packs together.
- We have available batteries with larger discharge parameters for fast charge/discharge requirements.

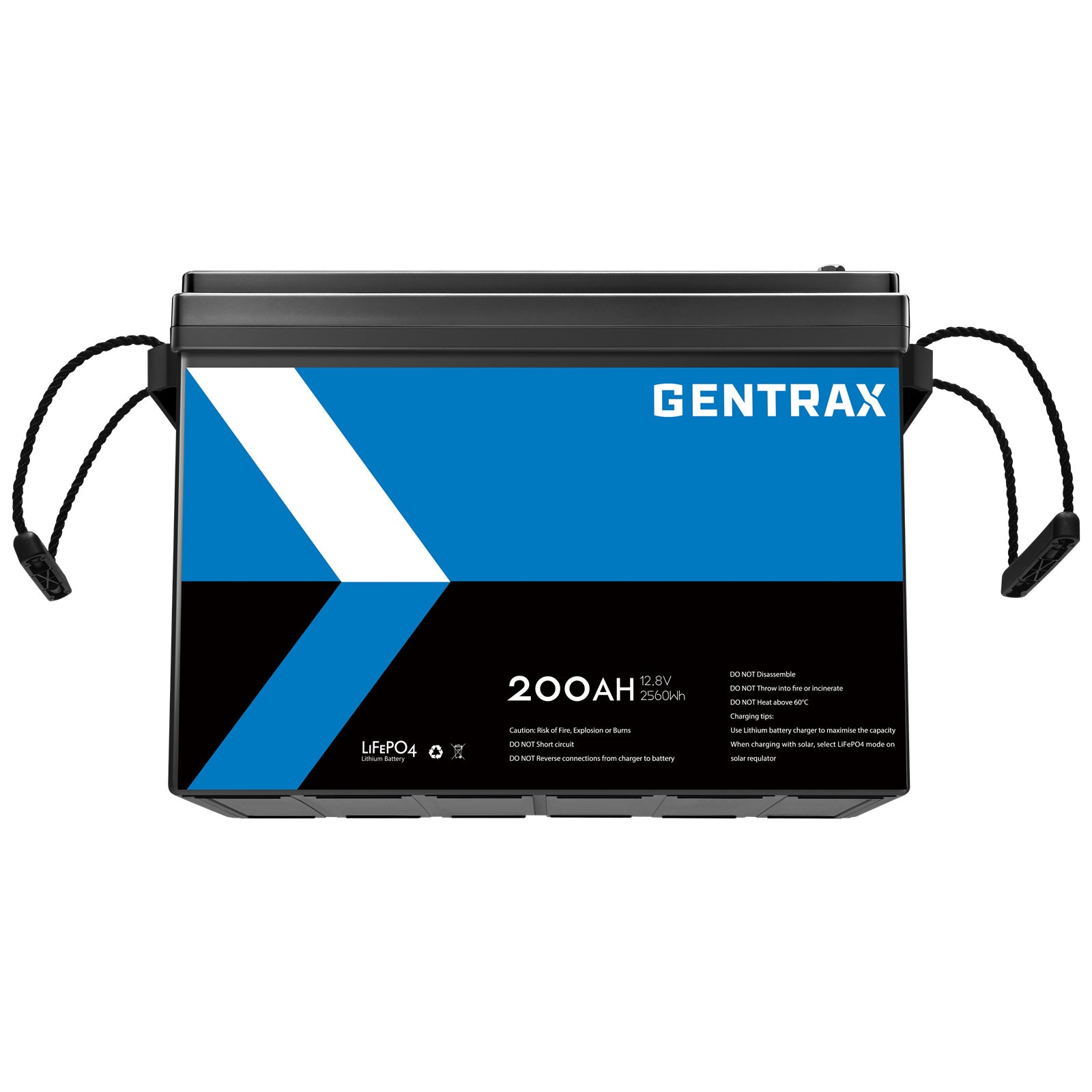

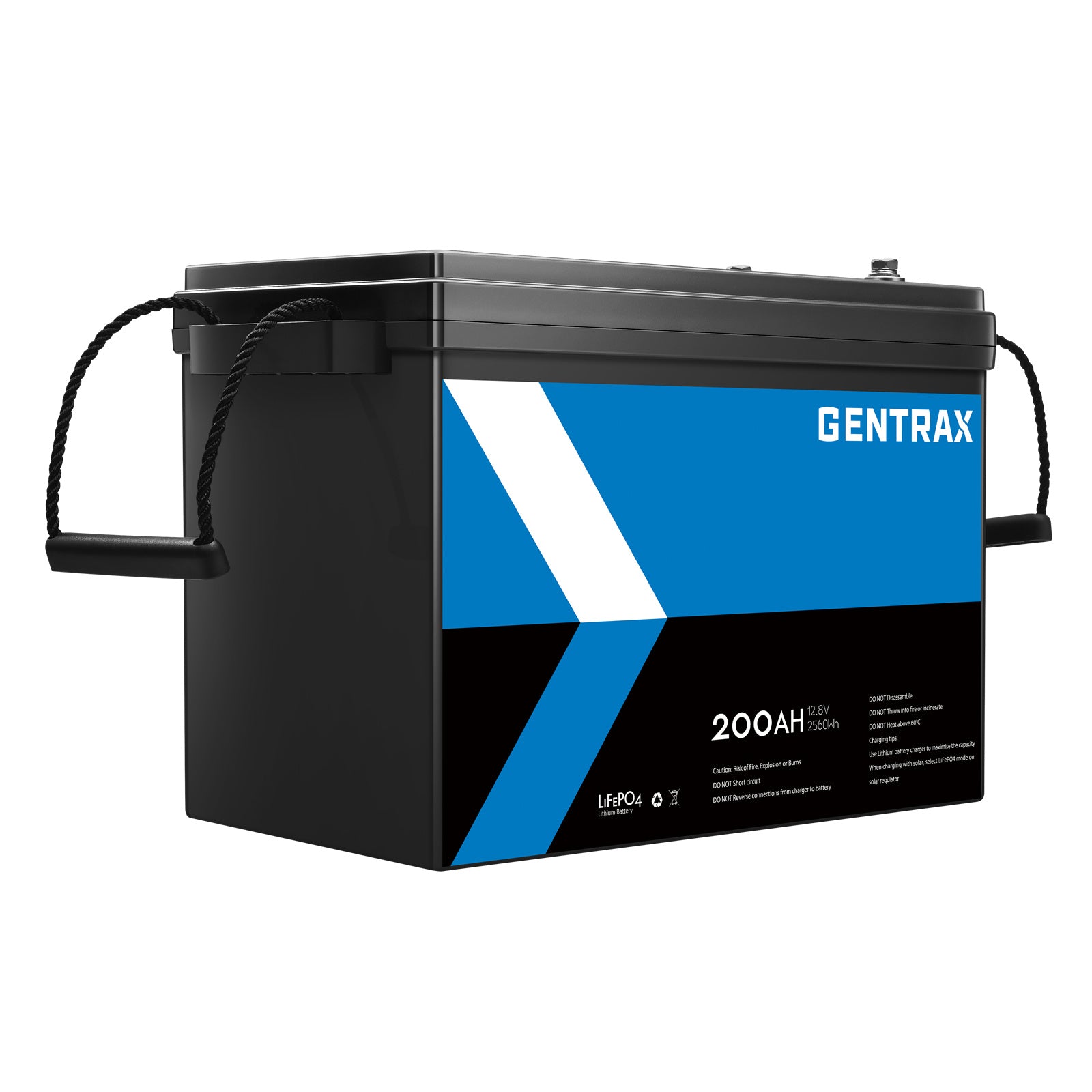

- Our batteries are also available in 200Ah and 300Ah for larger capacity demands.
SPECIFICATIONS
| Nominal Voltage: | 12.8V |
| Nominal Capacity: | 100Ah |
| Charging Voltage: | 14.2-14.6v |
| Rated Energy: | 1280Wh |
| Standard Charging Current: | 50A |
| Max. Charging Current: | 100A |
| Rated Discharge Current: | 100A |
| Max. Discharge Current: | 100A |
| Max. Discharge Current 5 sec: | 200A |
| Approx Life Cycles: | 3000 |
| Absorption Voltage: | 14.2-14.6v |
| Float Voltage: | 13.6V |
| Overcharge Protection: | 14.6V |
| Overcharge Recovery: | 14.2V |
| Overdischarge Protection: | 11.2V |
| Overdischarge Recovery: | 10.6V |
| Cell Grouping: | 4S2P |
| Working Temperature Range: | Charge: 0°C to 45°C | Discharge: -25°C to 65°C |
| Storage Temperature: | -10℃ to 50℃ |
| Case Material: | ABS Plastic |
| Parallel Connection: | Yes, max 4 batteries |
| Series Connection: | No |
| Warranty in Years: | 2 |
DIMENSIONS & WEIGHT
| Dimensions: | 306(L) x 169(W) x 215(H)mm |
| Weight: | 9.5kgs |
WHAT'S IN THE BOX
| 1 x | Lithium Battery |
All our models produce a Pure Sine Wave Output, making them safe even for sensitive devices such as laptops and mobile phones.
Included in the box
What is an inverter generator and why does it matter?
An inverter generator is a type of portable generator that produces electricity in a highly regulated and clean manner by first producing AC (alternating current) electricity, which is then transformed into DC (direct current) power, and then back to AC power with the desired level of voltage and frequency, using inverters. They are known for their fuel efficiency, quieter operation, and clean electrical output, which makes them ideal for powering sensitive electronic devices, such as laptops, smartphones, and medical equipment. They are also typically lighter and more compact than conventional generators, making them easier to transport and store.
What is pure sine wave and why does it matter?
A pure sine wave is a smooth, continuous waveform that oscillates between positive and negative voltage values in a consistently predictable pattern. When it comes to power generating equipment such as inverters and generators, having a pure sine wave output is important because many sensitive electronic devices, such as laptops, TVs, and medical equipment, require clean power to function properly and not be damaged.
What appliances can this generator power?
This best-selling Gentrax generator can power appliances that require up to 3.85kW output for starting and 3.5kW output for running.
What type of oil is best for Gentrax inverter generators?
For Gentrax generators, we recommend using a 10w30 small engine, 4-stroke oil. Here's an example for reference: https://www.supercheapauto.com.au/p/penrite-penrite-small-engine-4-stroke-engine-oil---10w-30-1-litre/346381.html
Can I use this generator in a National Park?
Generally, generators below 65dB are allowed in parks as they are considered quiet generators. Our Gentrax units have an average noise level of 58dB at 7m, which is similar to the sound of a low TV volume. However, it's still best to check with the relevant agency managing the national parks that you want to visit in case of additional requirements.
Does this generator have a digital inverter?
Yes, all Gentrax generators have digital inverter technology, which produces pure sine wave output - a 'clean' energy output that is safe to power sensitive electrical appliances.
