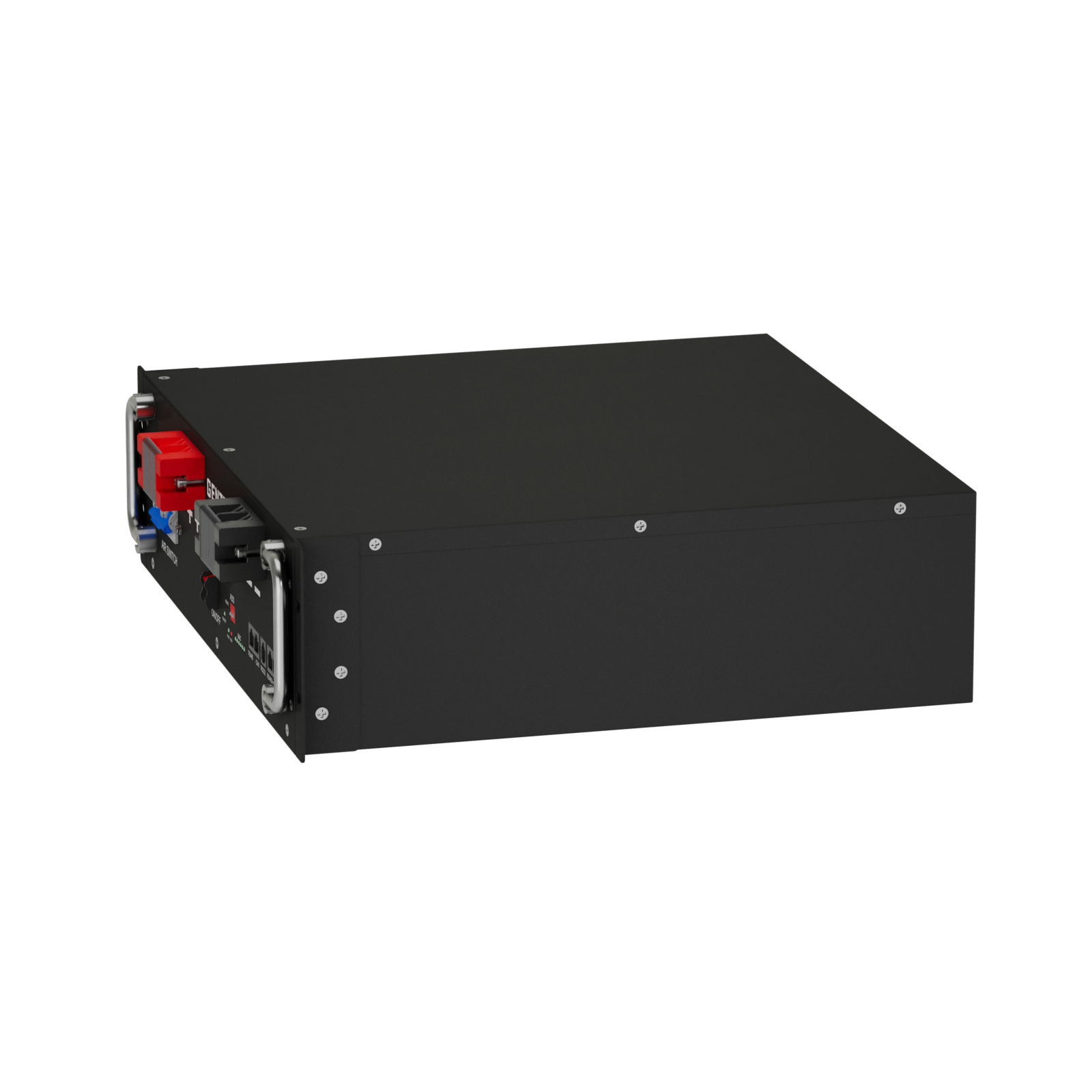

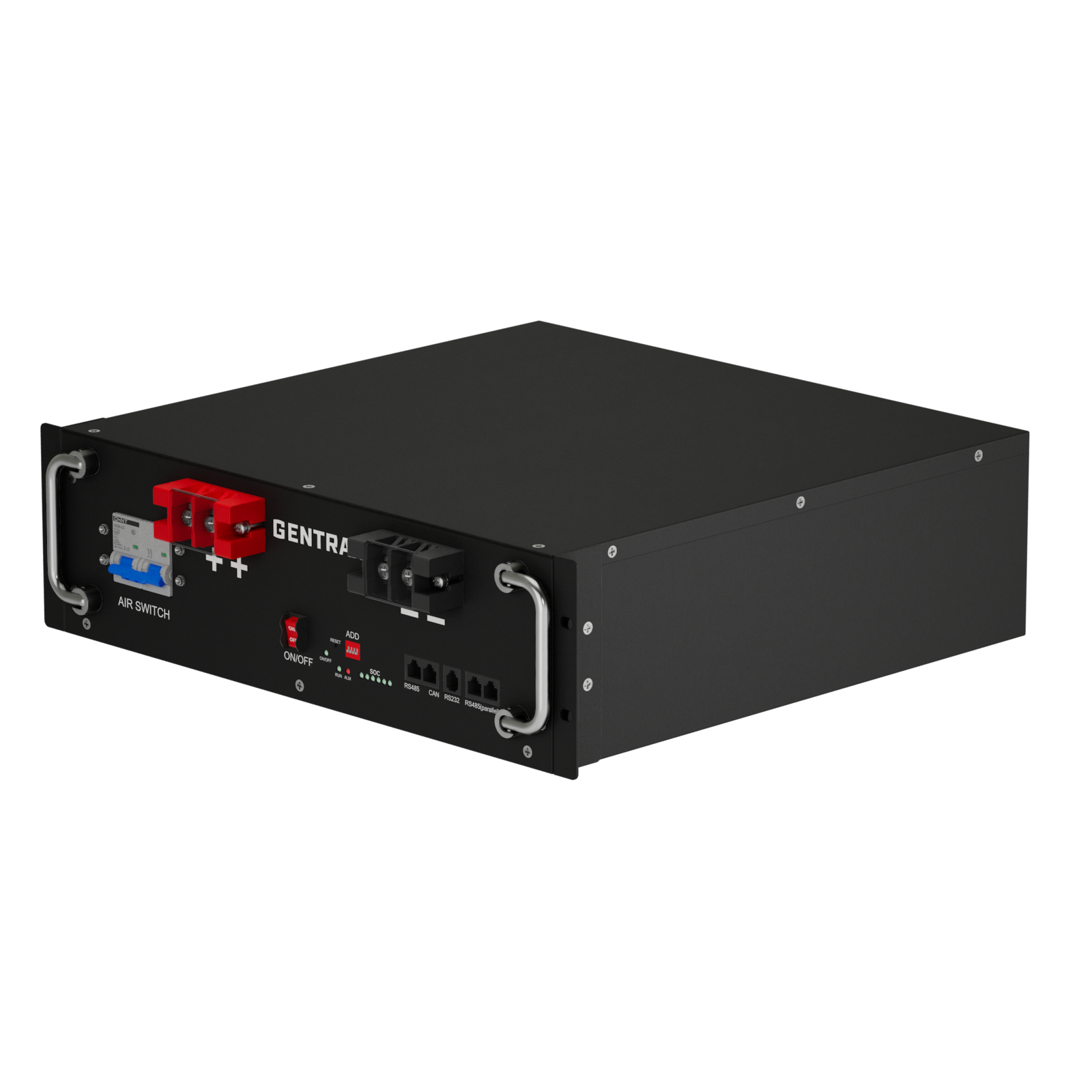

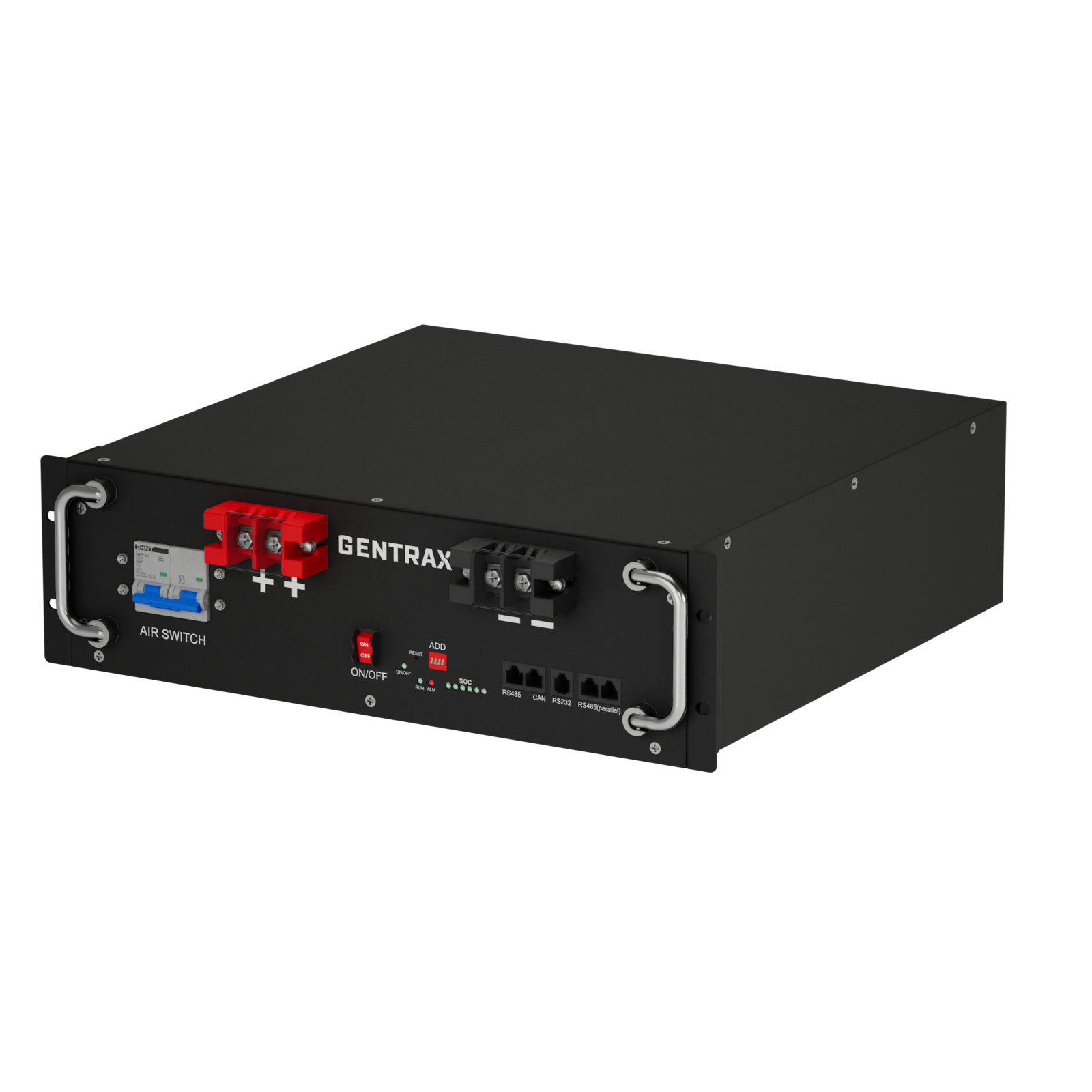

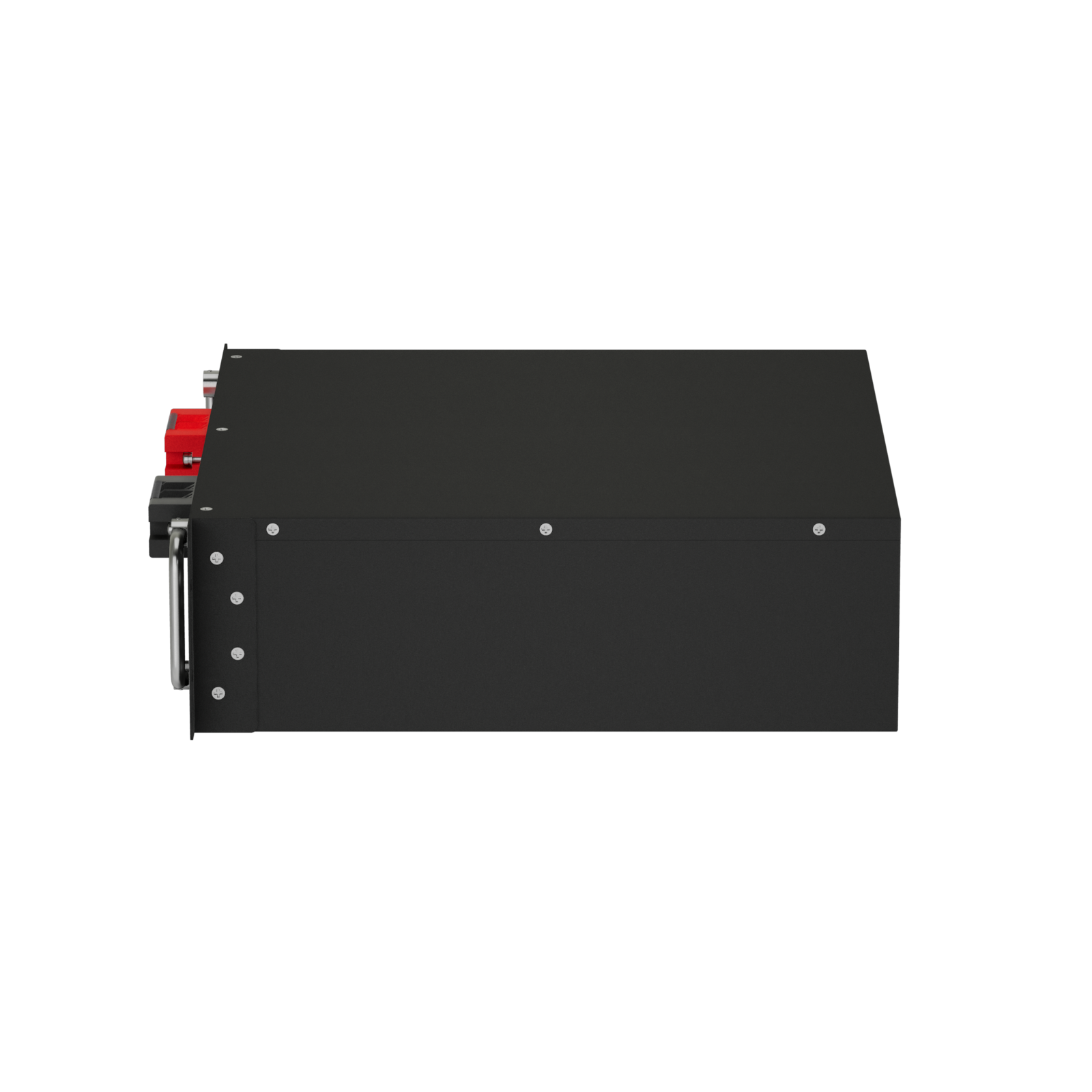

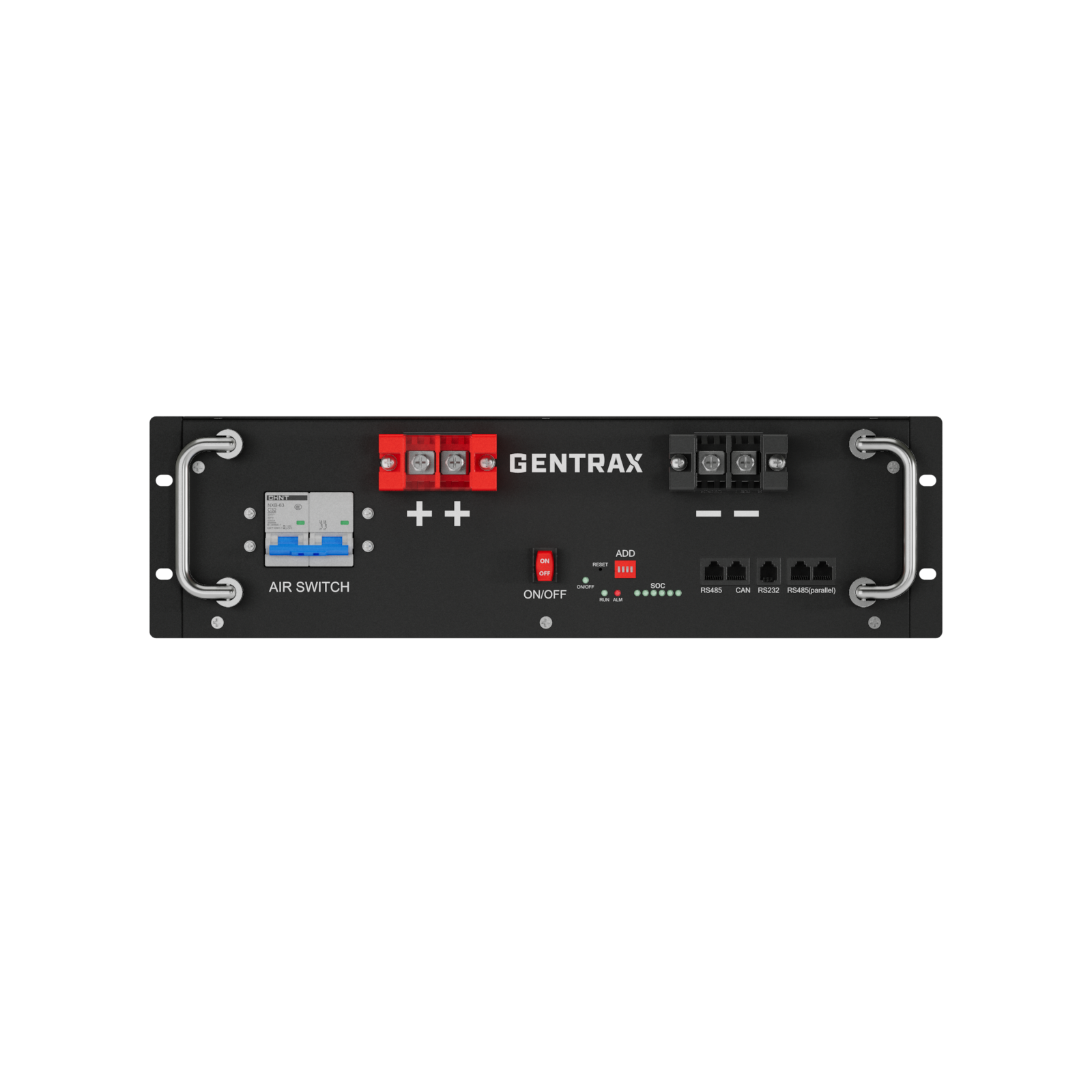

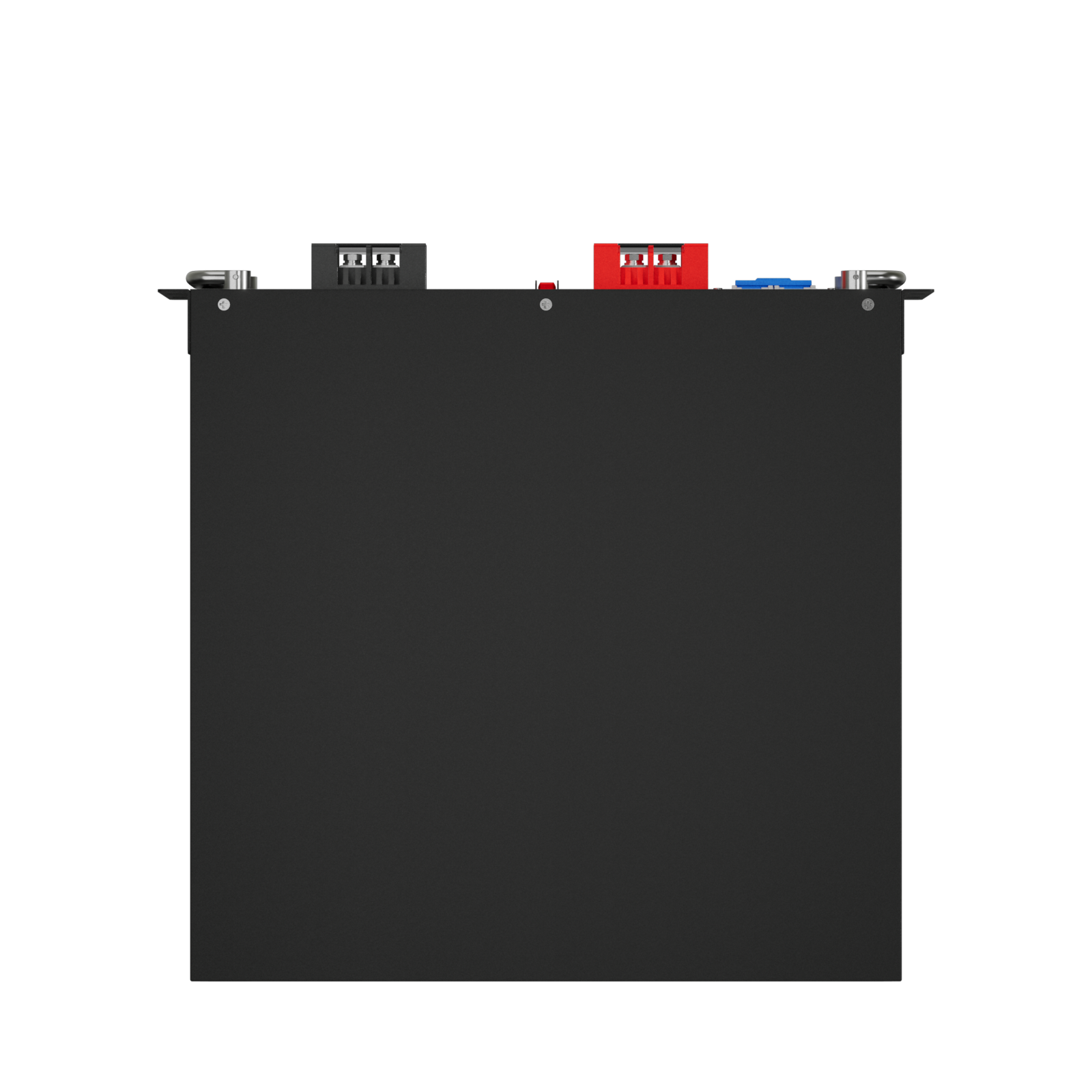

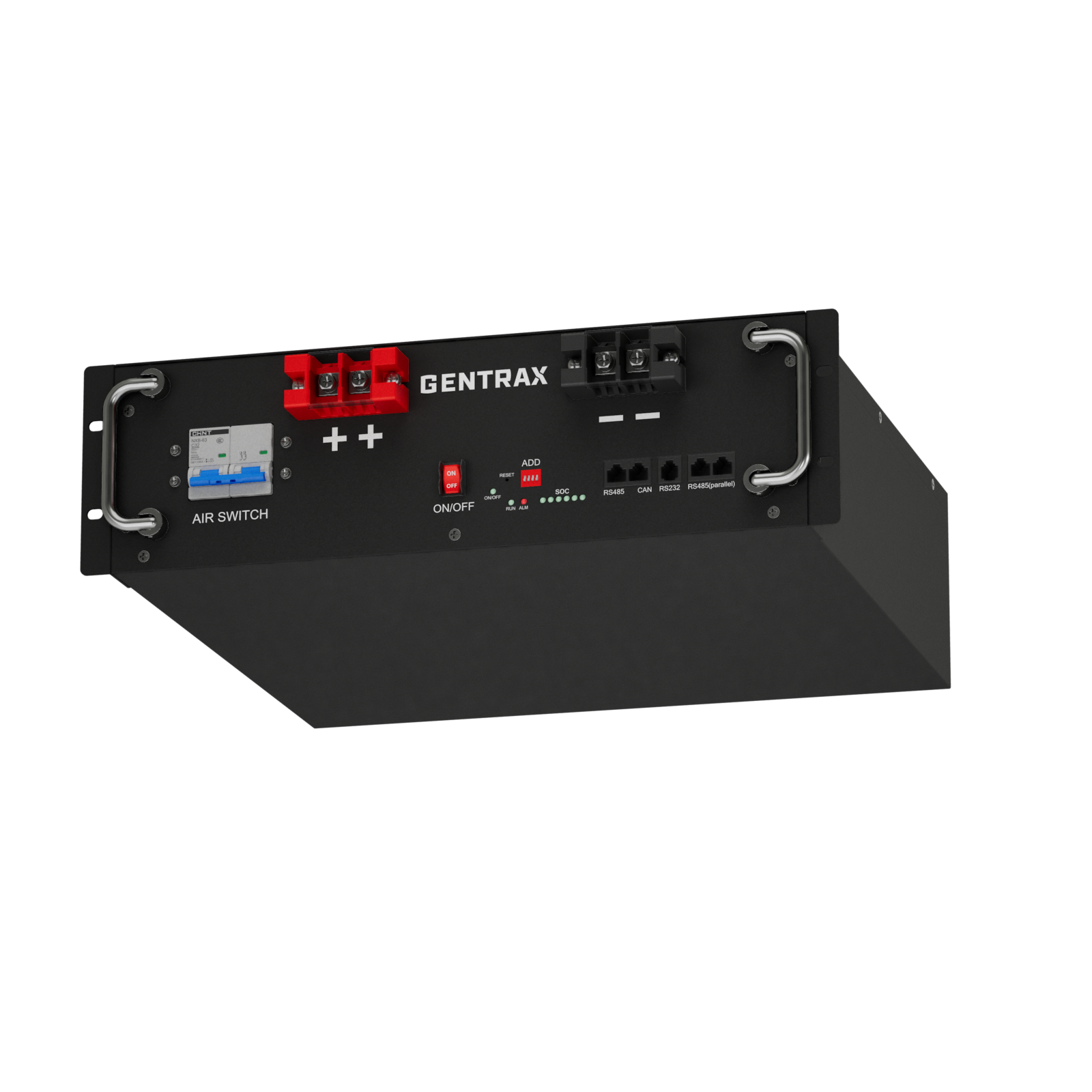

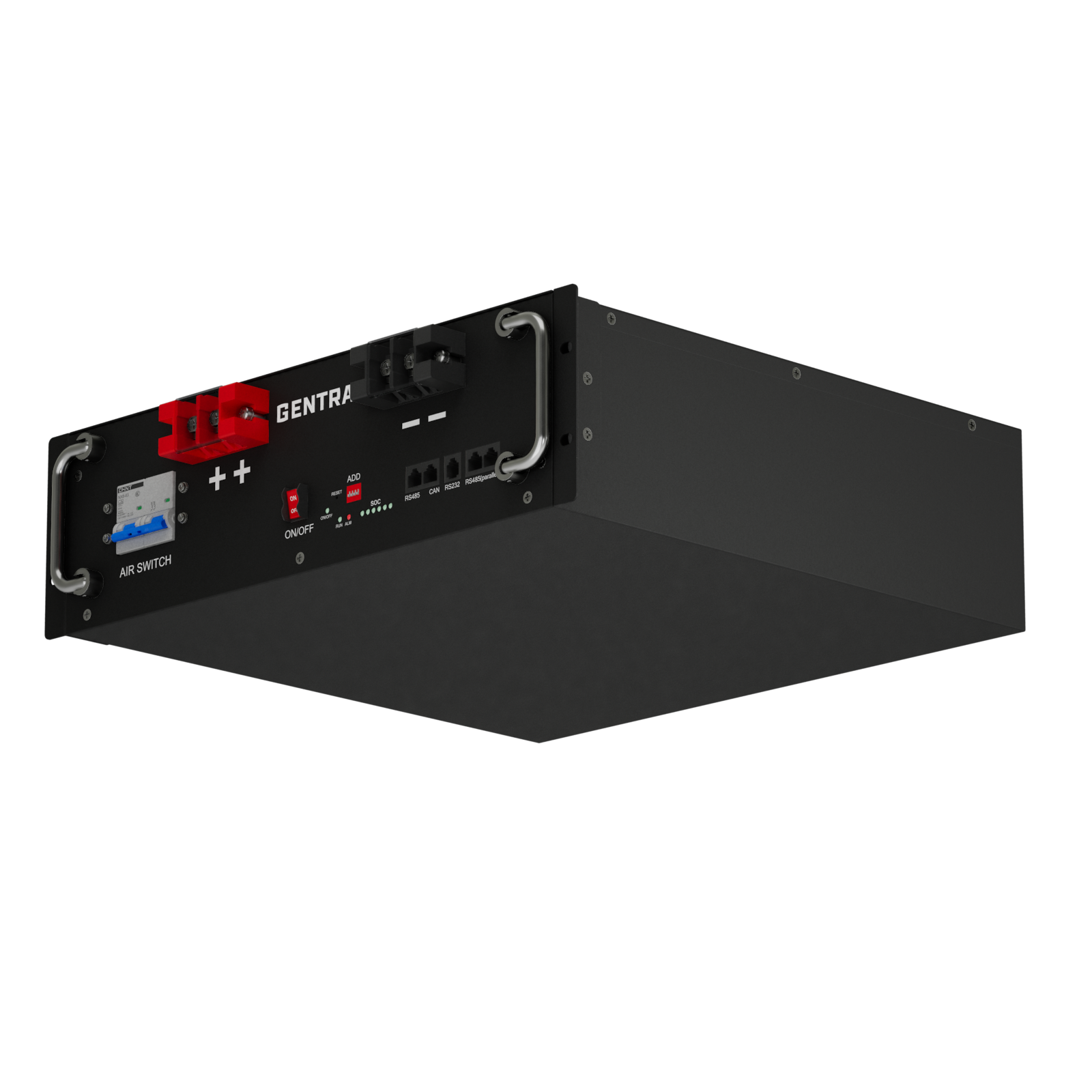

Gentrax 51V 100Ah Lithium LiFePO4 Battery
About Gentrax 51V 100Ah Lithium LiFePO4 Battery
Powerful & Reliable Energy Storage: Gentrax 5120Wh LiFePO4 Battery Module
-
High Capacity for Various Energy Needs
The Gentrax LiFePO4 battery provides 5120Wh of reliable energy storage, ensuring stable performance and efficient power delivery. Its high capacity supports extended usage, reducing the need for frequent recharging.
-
3000+ Cycle Life for Long-Term Use
Built with LiFePO4 cells, this battery provides 3000+ cycles at 80% DOD. Its durability reduces replacement costs, ensuring greater value over time.
-
Safe & Stable LiFePO4 Battery
With high safety standards, it performs reliably even in extreme conditions, offering stable and secure energy storage.
-
Versatile Applications for Reliable Power
Designed for home backup, off-grid living, solar energy storage, and emergency power, the GENTRAX 5120Wh LiFePO4 battery ensures a stable and efficient power supply for both residential and commercial needs.
-
5-Year Warranty & Local Technical Support
Backed by a 5-year warranty, the GENTRAX 5120Wh LiFePO4 battery ensures durability and peace of mind. Its high-quality design and advanced technology provide a stable, long-lasting energy solution for various applications.
SPECIFICATIONS
| Nominal Voltage: | 51.2V |
| Nominal Capacity: | 100Ah |
| Maximum Continuous Charging Current: | 100A |
| Maximum Continuous Discharge Current: | 100A |
| Voltage Range: | 40–58.4V |
| Operating Temperature Range: | Charging: 0°C to 45°C Discharge: -10°C to 45°C |
| Class of Protection: | IP20 |
DIMENSIONS & WEIGHT
| Dimensions: | L483 × W430 × H135 mm |
| Weight: | 41 ± 1 kg |
WHAT'S IN THE BOX
| 1 x | Lithium Battery |
|
|
|
|
|
| Catalogue | Blade | Slim | General | General |
| Life Cycles | 3000+ | 3000+ | 3000+ | 3000+ |
| Nominal Voltage(v) | 12.8V | 12.8V | 12.8V | 12.8V |
| Usable Capacity(Ah) | 100Ah | 100Ah | 100Ah | 200Ah |
| Nominal Capacity(Ah) | 100Ah | 100Ah | 100Ah | 200Ah |
| Rated Energy(wh) | 1280Wh | 1280Wh | 1280Wh | 2650Wh |
| Charging Voltage(V) | 14.2 - 14.6V | 14.2 - 14.6V | 14.2 - 14.6V | 14.2 - 14.6V |
| Max. Continuous Discharge Current(A) | 100A | 100A | 100A | 100A |
| Max. Discharge Current 5 sec(A) | 200A | 200A | 200A | 200A |
| Charge Temperature | 0-50℃ | 0-50℃ | 0-50℃ | 0-50℃ |
| Discharge Temperature | 20-60℃ | 20-60℃ | 20-60℃ | 20-60℃ |
| Storage Temperature | -10℃ ～50℃ | -10℃ ～50℃ | -10℃ ～50℃ | -10℃ ～50℃ |
| Approx Life Cycles | 2000+ | 2000+ | 2000+ | 2000+ |
| BMS(A) | 100A | 100A | 100A | 100A |
| Warranty | 2 Years | 2 Years | 2 Years | 2 Years |
| Certify | UN38.3 | UN38.3 | UN38.3 | UN38.3 |
| Brand | Gentrax | Gentrax | Gentrax | Gentrax |
| Gain Weight | 15kg | 9.5kg | 9.5kg | 19kg |
| Net Weight | 16kg | 10.4kg | 10.4kg | 20kg |
| Product Size | 630*240*60 | 395*110*286 | 306*169*215 | 345*190*245 |
| Package Size | 704*313*140 | 458*172*346 | 360*230*271 | 422*242*305 |
| 20GP | 560-600 | 760-840 | 900-1050 | 600 |
| 40HC | 1120-1200 | 1520-1862 | 1785-2100 | 1140 |
| Case Material | metal-iron | ABS | ABS | ABS |
| Cell Grouping（cell Series ＆ Parallels) | 4S2P | 4S2P | 4S2P | 4S2P |
| Factory-Battery Parallel Connection: | 4p(max) | 4p(max) | 4p(max) | 4p(max) |
| Factory- Battery Series Connection: | N | N | N | N |
| C rating (C) | 1C | 1C | 1C | 0.5C |
| Protection Class（IP) | / | IP65 | IP65 | IP65 |
| Charge Method | CC/CV | CC/CV | CC/CV | CC/CV |
| Charging Voltage(V) | 14.2-14.6V | 14.2-14.6V | 14.2-14.6V | 14.2-14.6V |
| Discharge Cut-off voltage | 10V | 10V | 10V | 10V |
| Standard Charging Current(A) | 50A | 50A | 50A | 50A |
| Max. Charging Current(A) | 100A | 100A | 100A | 100A |
| Standard Discharge Current(A) | 100A | 100A | 100A | 100A |
| Bolt Type | N | M8*2 | M8*2 | M8*2 |
| Overcharge Protection(V) | 14.6V | / | 14.6V | - |
| Overcharge Recovery(V) | 14.4V | / | 14.4V | / |
| Overdischarge Protection(V) | 10V | / | 10V | / |
| Overdischarge Recovery(V) | 11V | / | 11V | / |
| Absorption Voltage(V) | 14.2-14.6V | / | 14V | / |
| Float Charging | 14.2-14.6V | / | 15V | / |
| Bolt Material | N | Iron nickel-plated | Iron nickel-plated | Iron nickel-plated |
| Bolt Terminal Size (Length) | N | Hexagon x 14mm | Hexagon x 14mm | Hexagon x 14mm |
| Bolt Terminal Perimeter | N | 25.12mm | 25.12mm | 25.12mm |
Reliable Power, Real Reviews
Mark M.
Gentrax Lithium Battery –Battery was delivered very quickly and running the fridge in the back of the Ute well. No issues and will be considering a couple of the 200ah for our caravan. Great Product at a fantastic price.
Thisal
No dramas here
I haven't had a chance to use it but I believe it will work as it supposed to. It got delivered quickly and looks solid. Bit bigger than the normal battery but It fits in a large battery box without any problem.
Stuart
Would purchase again
Purchased a 200 amp hour gentrax lithium battery to run a fridge and eletric trolling motor in my boat. So far very happy with it. I noticed that it held its 100% charge even after not in use for 1 month.
chelsea l
They work just fine. Recommended
Len K
ok so far, haven't really tested it yet
Pamela K
Seems to hold charge. I haven't had them installed
Seems to hold charge. I haven't had them installed yet so I don't really know how efficient they are or how they will age but the price was good and the weight is much better than the old AGM battery.
Jeff Cron
Good price and arrived promptly.
Arrived promptly, good communications. Have not fully tested yet but looks good.
Anthony
Great battery - works as promised! Quick delivery
Bought this to compliment an off-grid setup on a farm. Tested and it ran my kitchen fridge at home for 2 days and was still showing 13.3v - definitely worth buying.
They even followed up to make sure I was happy with the product - good work Gentrax.
Colin Kirk
Great battery
Very happy with this battery, have had it setup in the rear of my vehicle for the past couple of weeks now.
It hasn’t missed a beat running 24/7 would purchase again.
Westo2
Battery lithium
Great service, battery doing it's job perfectly highly recommend
Scott P
Great Battery- Great Price
The Gentrax 200ah lithium batteries are a direct replacement for the original 100ah batteries in my caravan, doubling my capacity for little extra space.
Alan
Excellent value 2nd battery for 4WD camper. Speedy delivery to our front door. Too soon to speak to longevity but it is very light and seems to be good quality.
All Gentrax LiFePO4 batteries are built with advanced technology for longer lifespan, stable output, and enhanced safety—perfect for RVs, camping, and emergency backup.
Included in the box
Built to Last
Backed by smart BMS protection and high-efficiency LiFePO4cells, our batteries deliver dependable energy you can count on.
