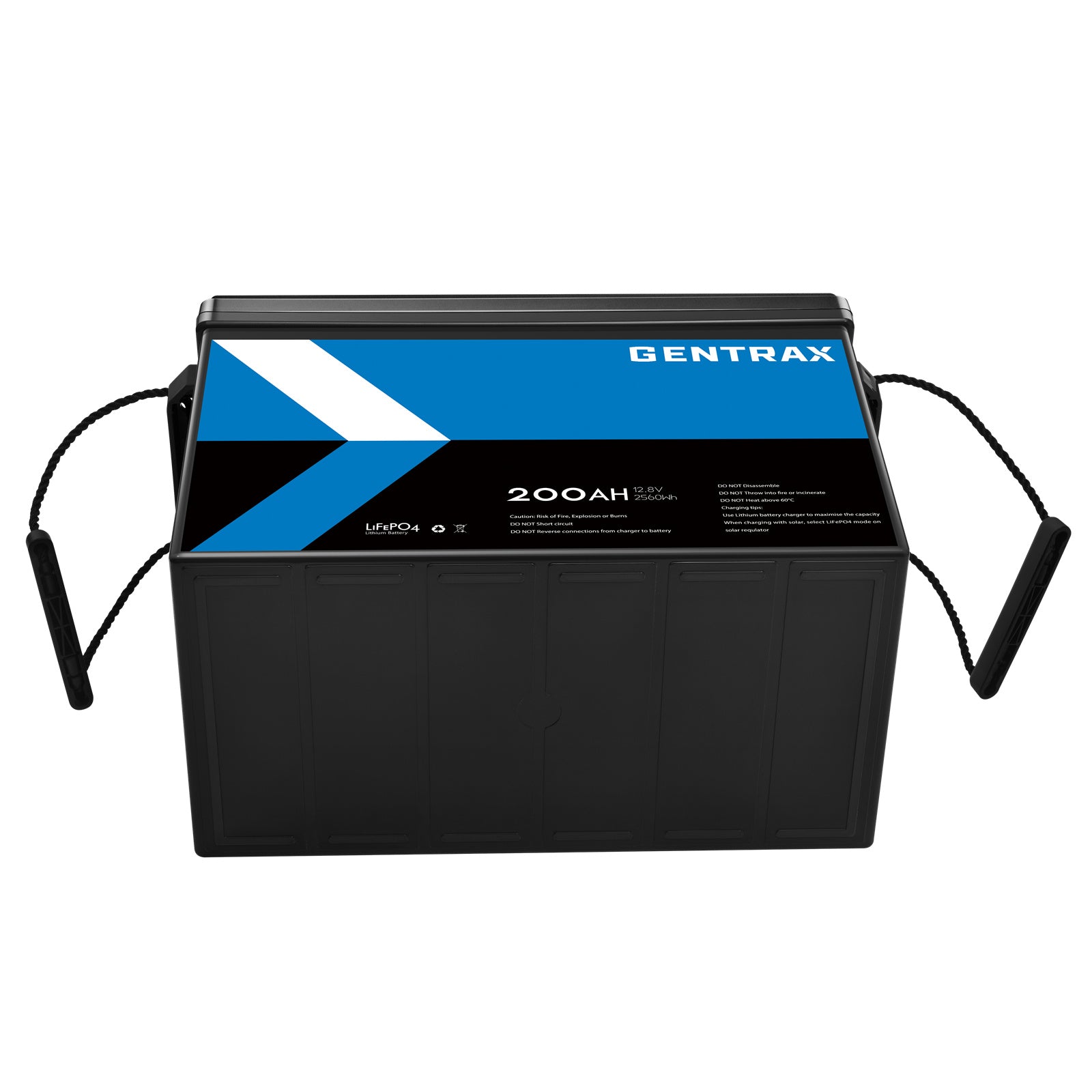

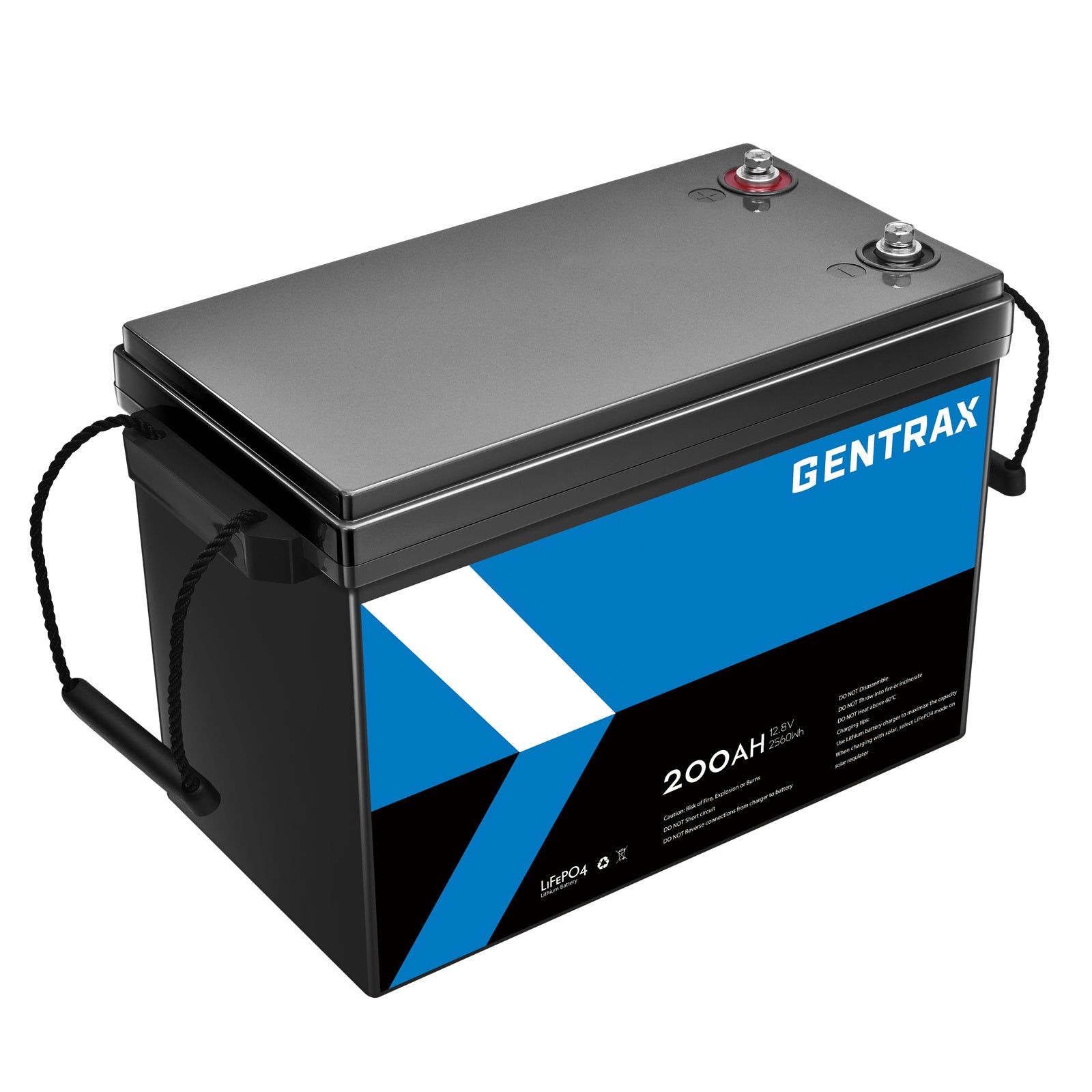

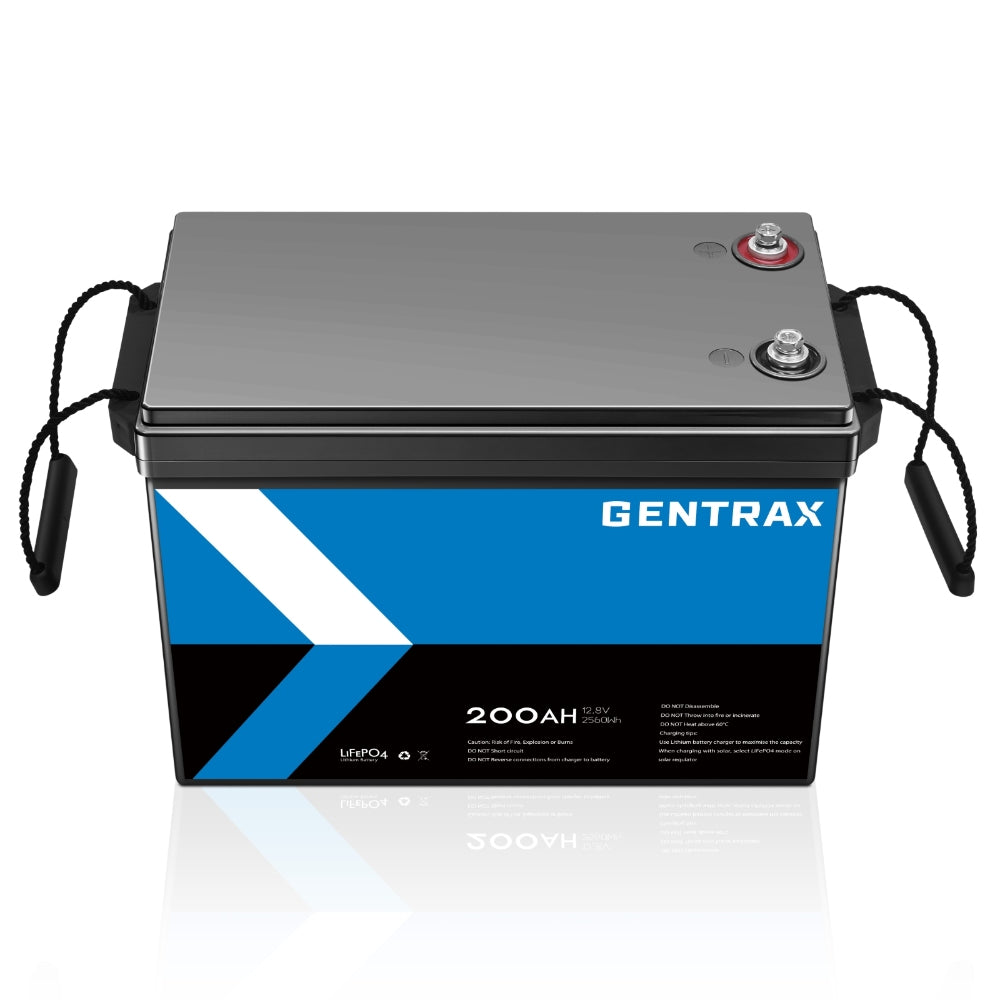

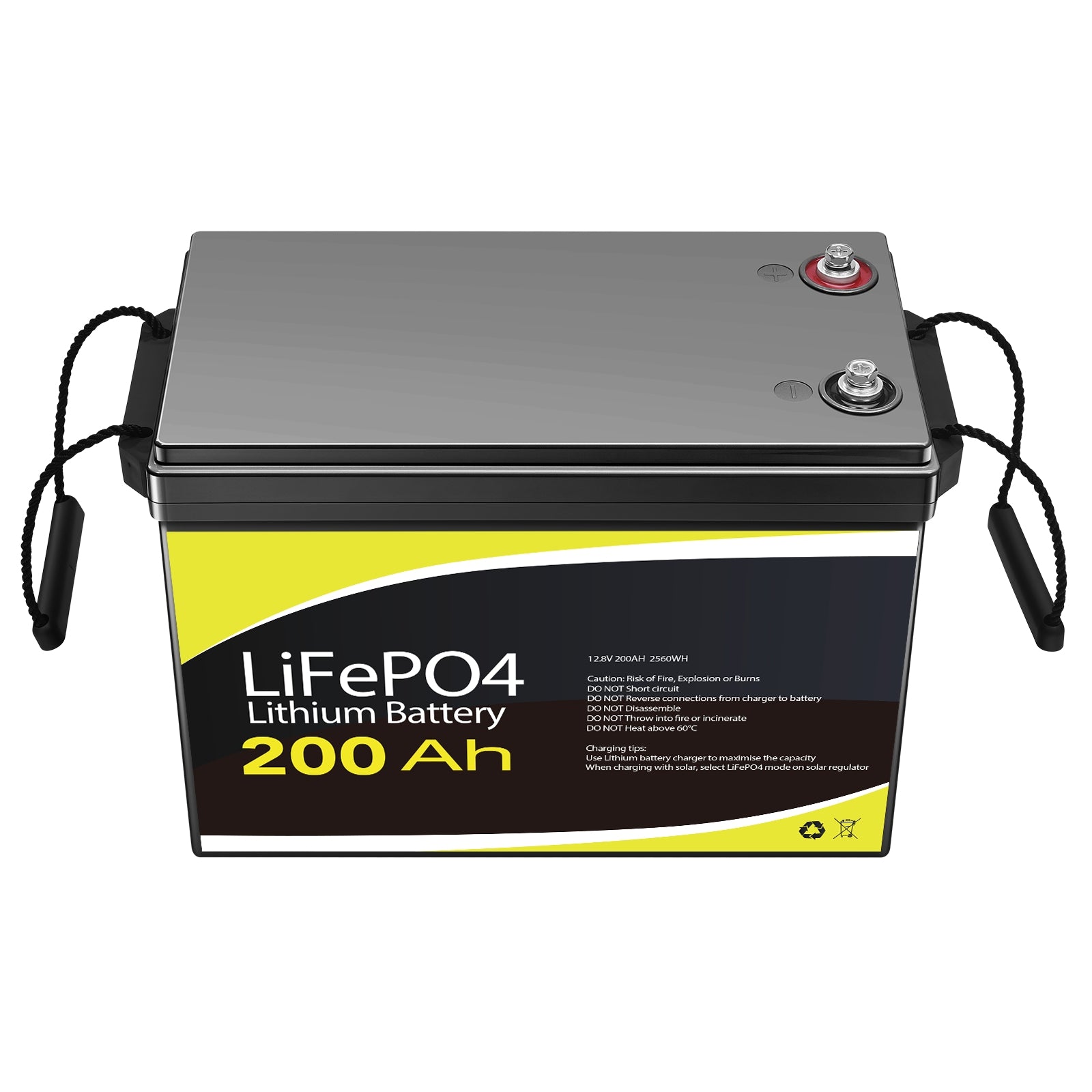

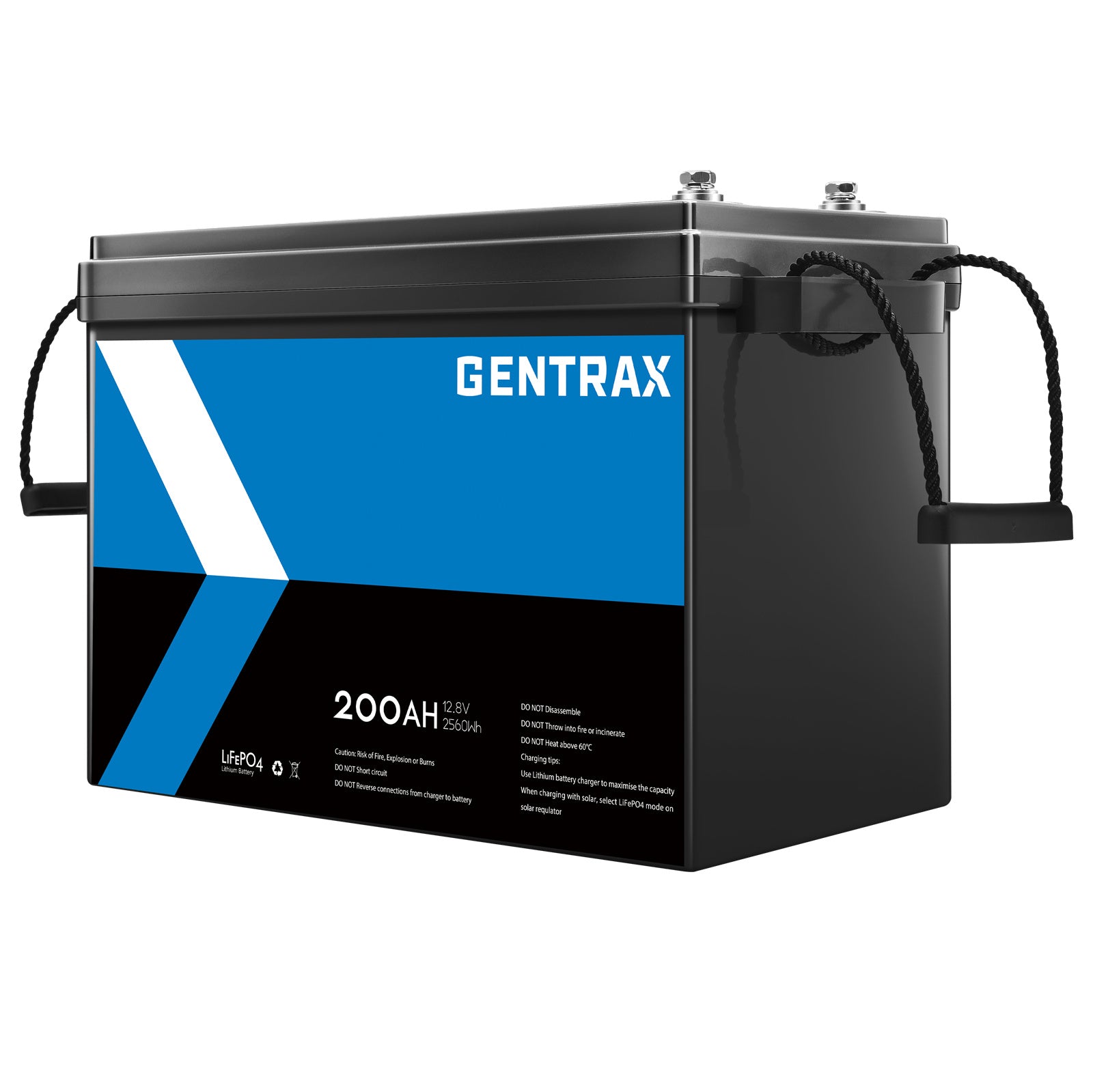

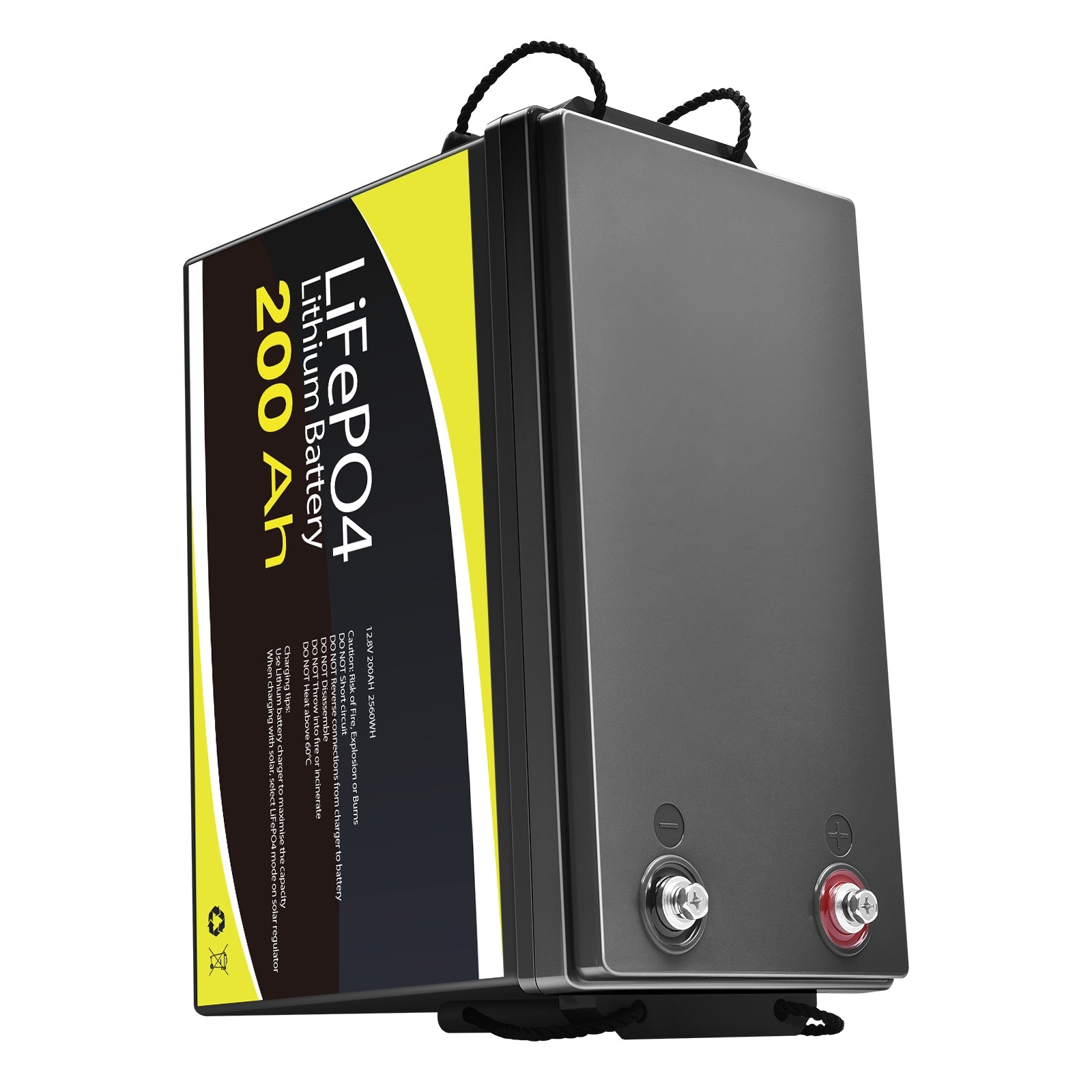

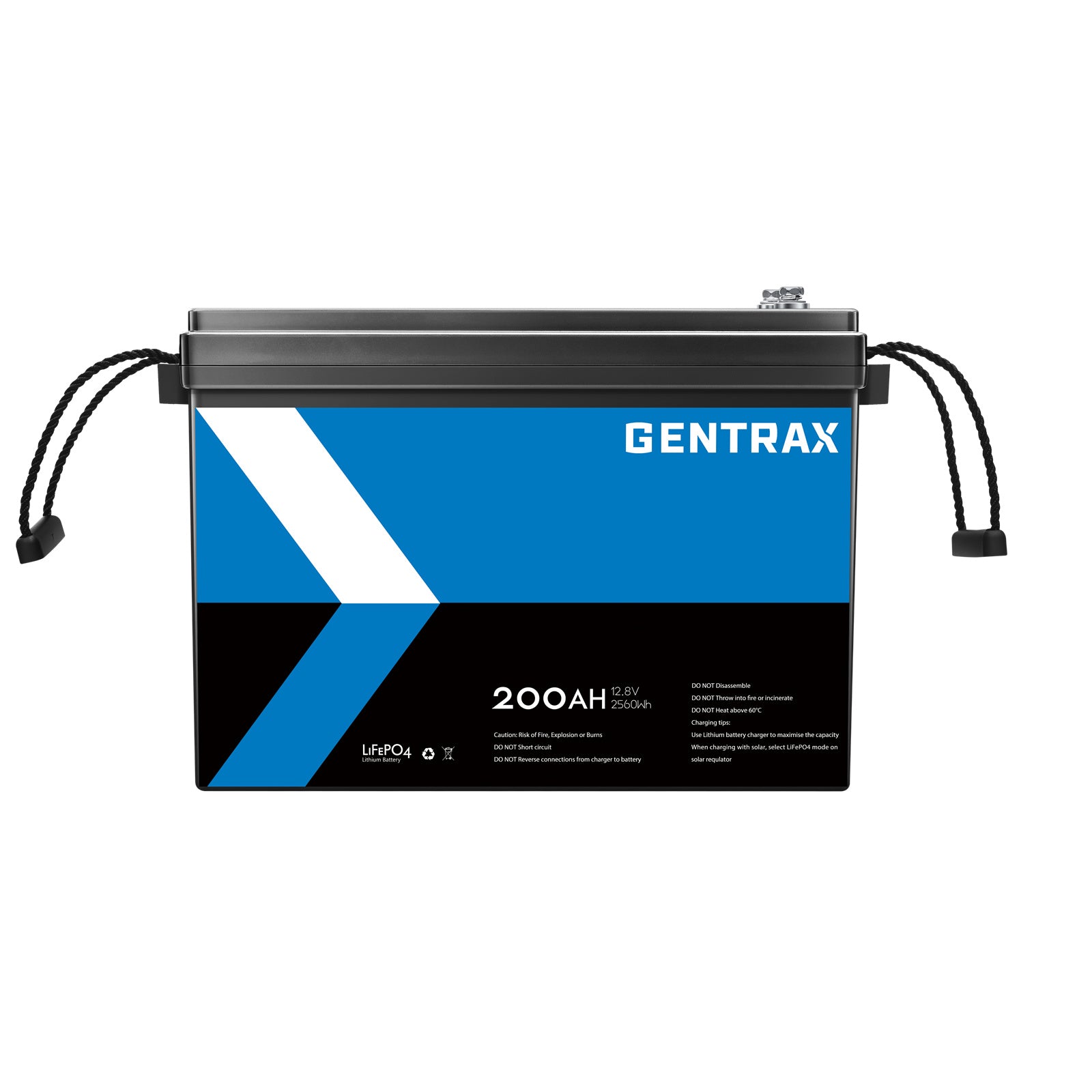

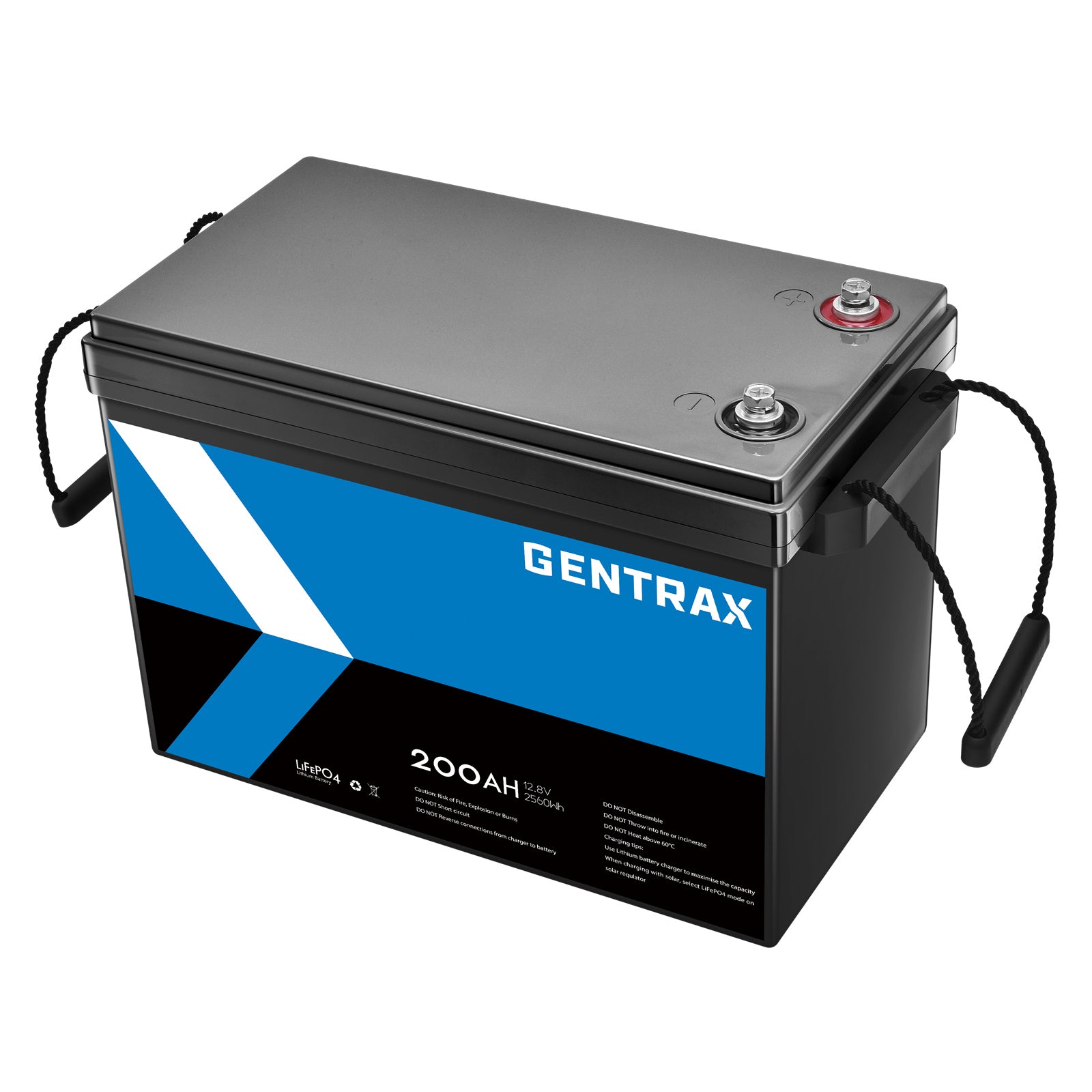

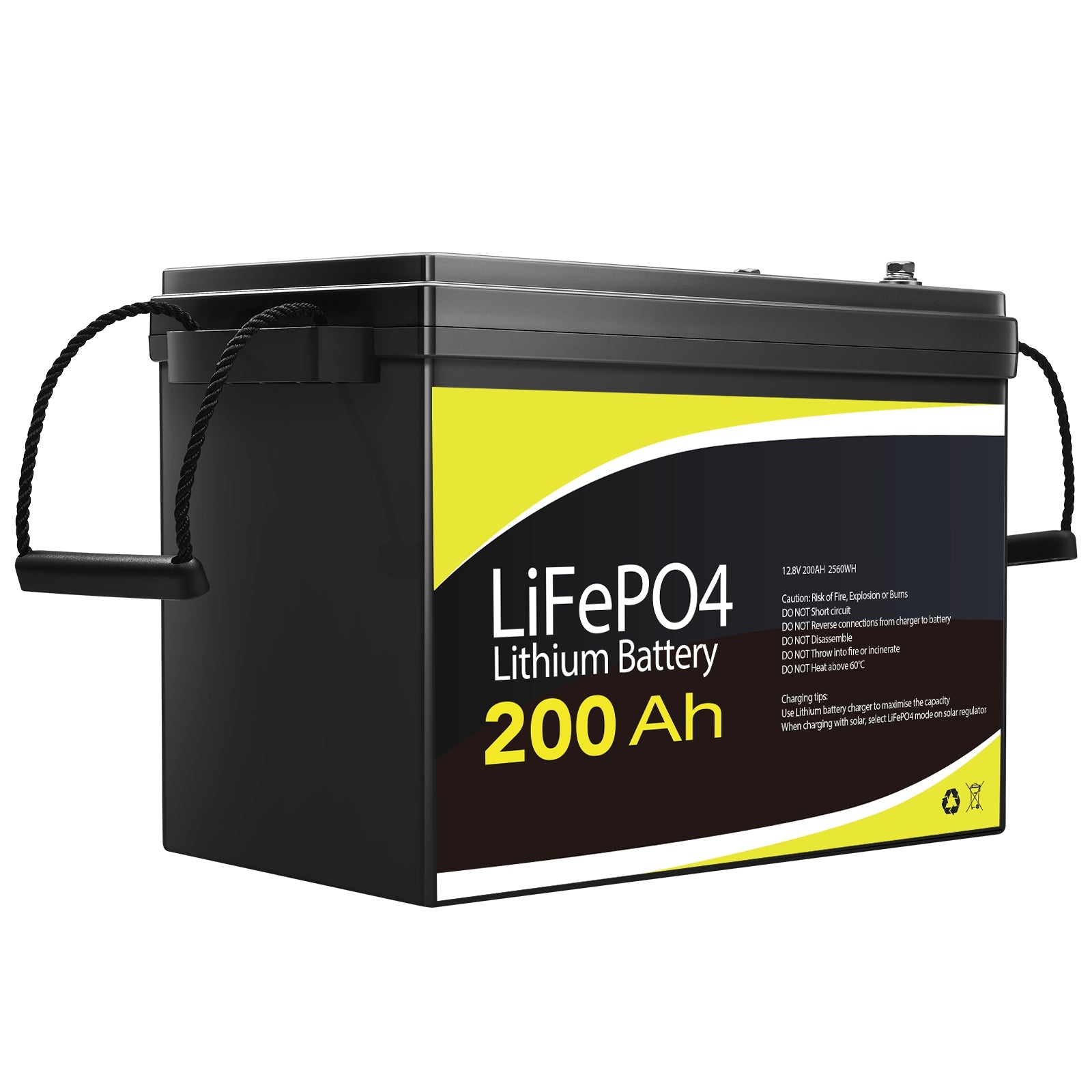

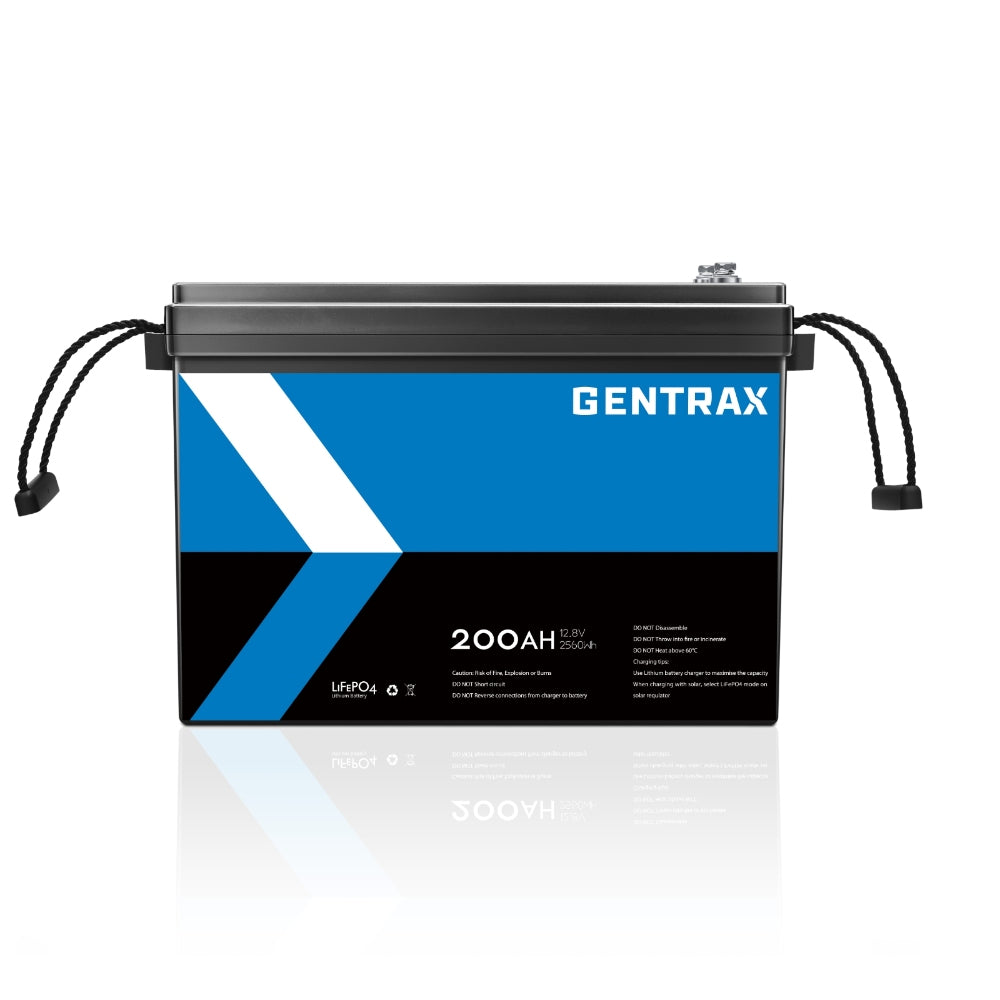

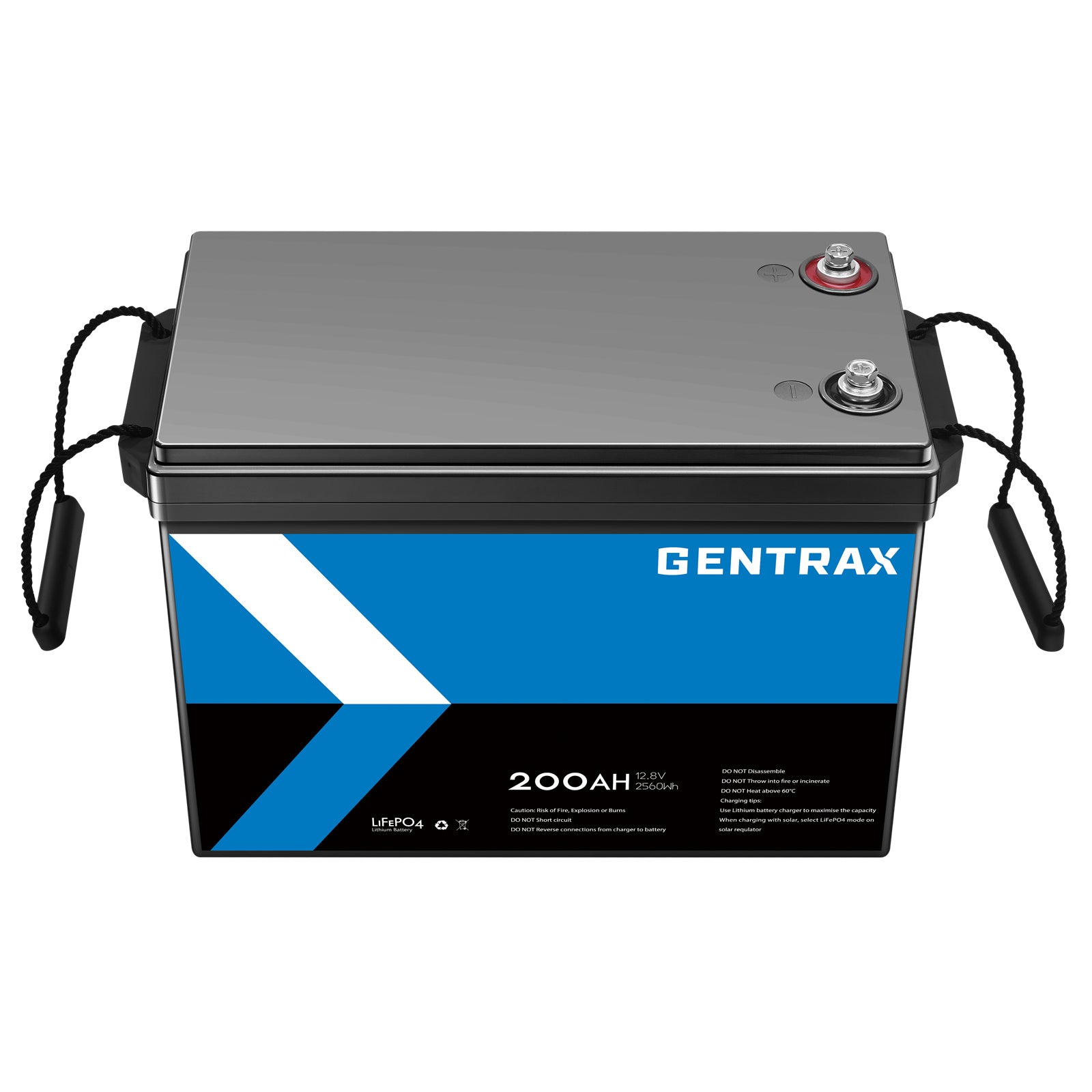

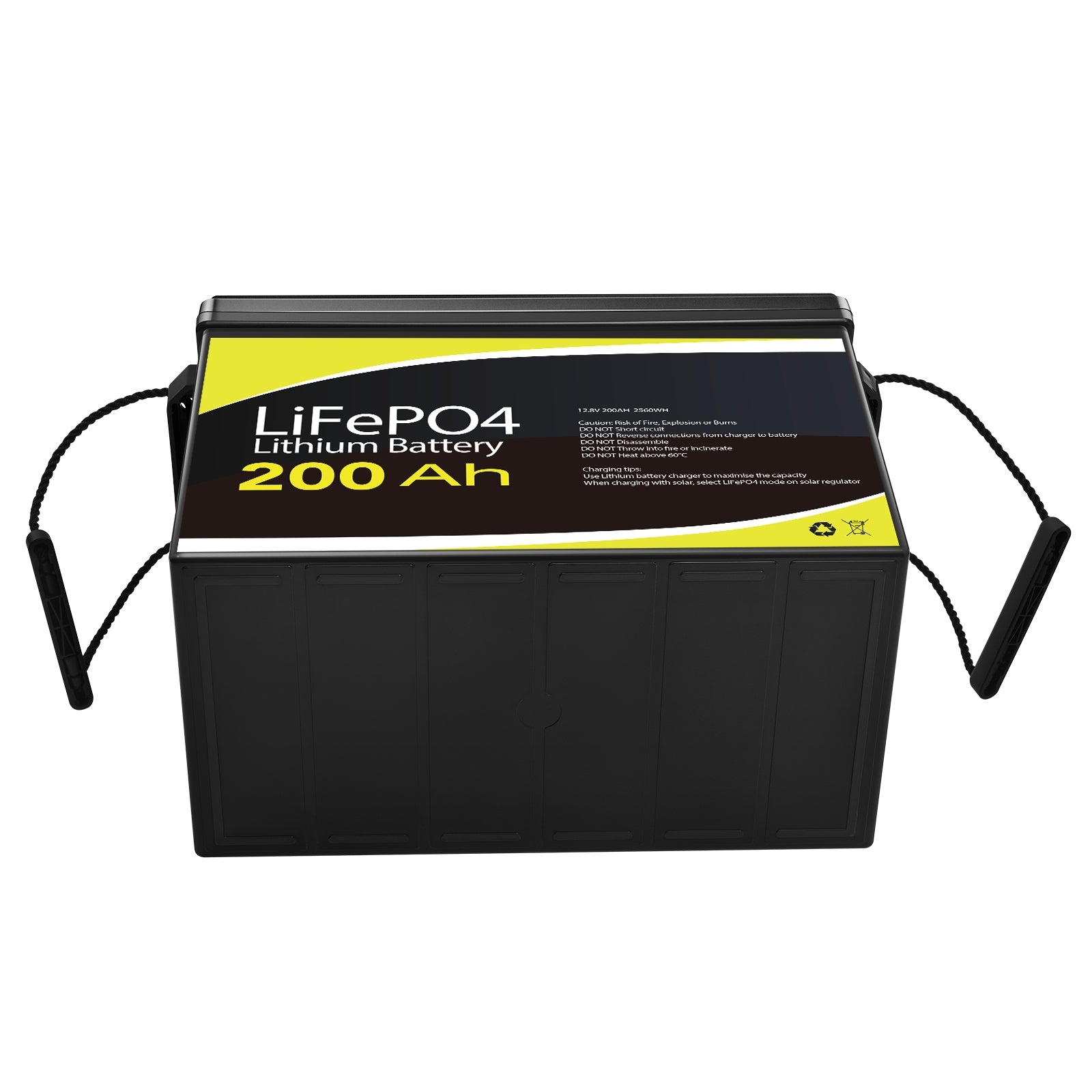

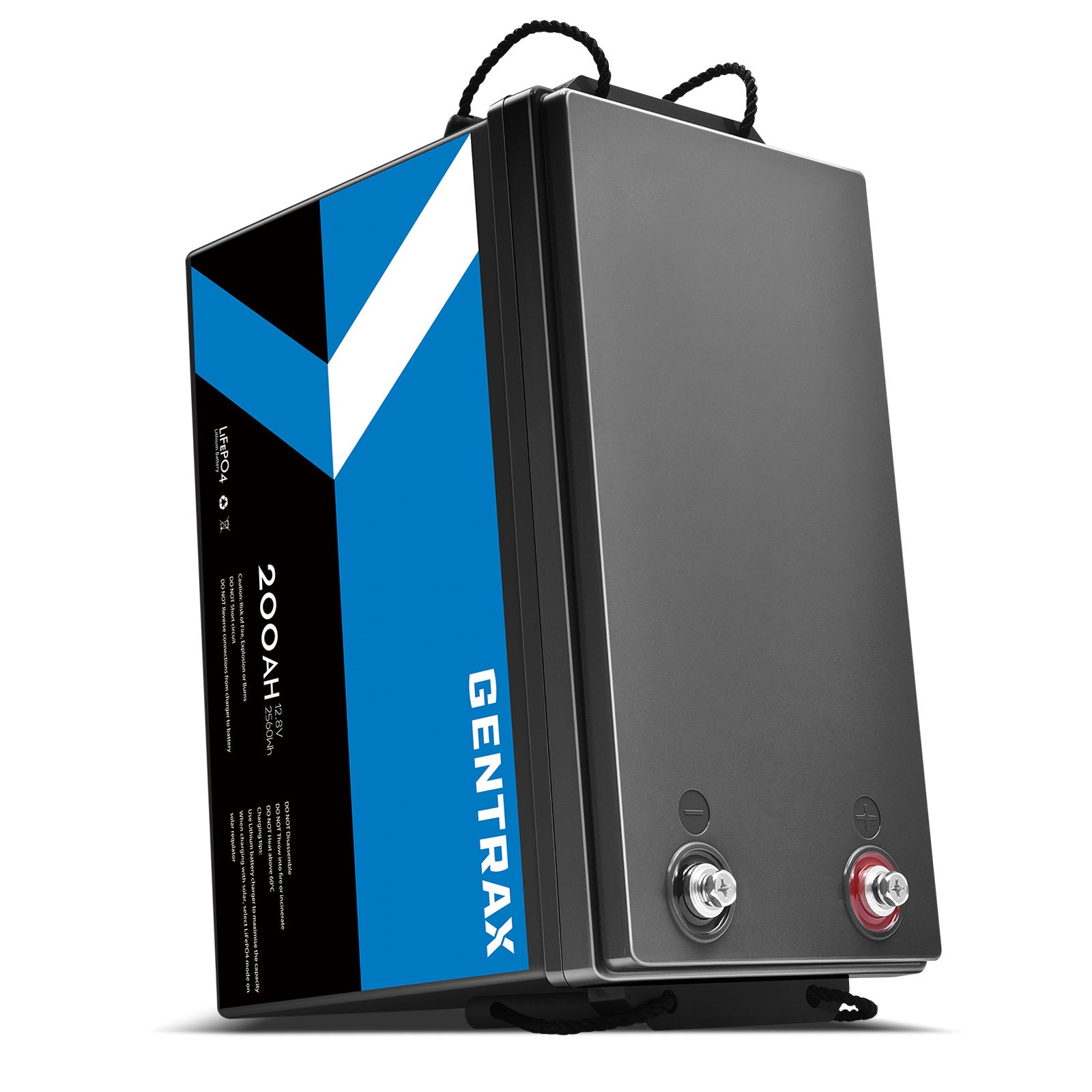

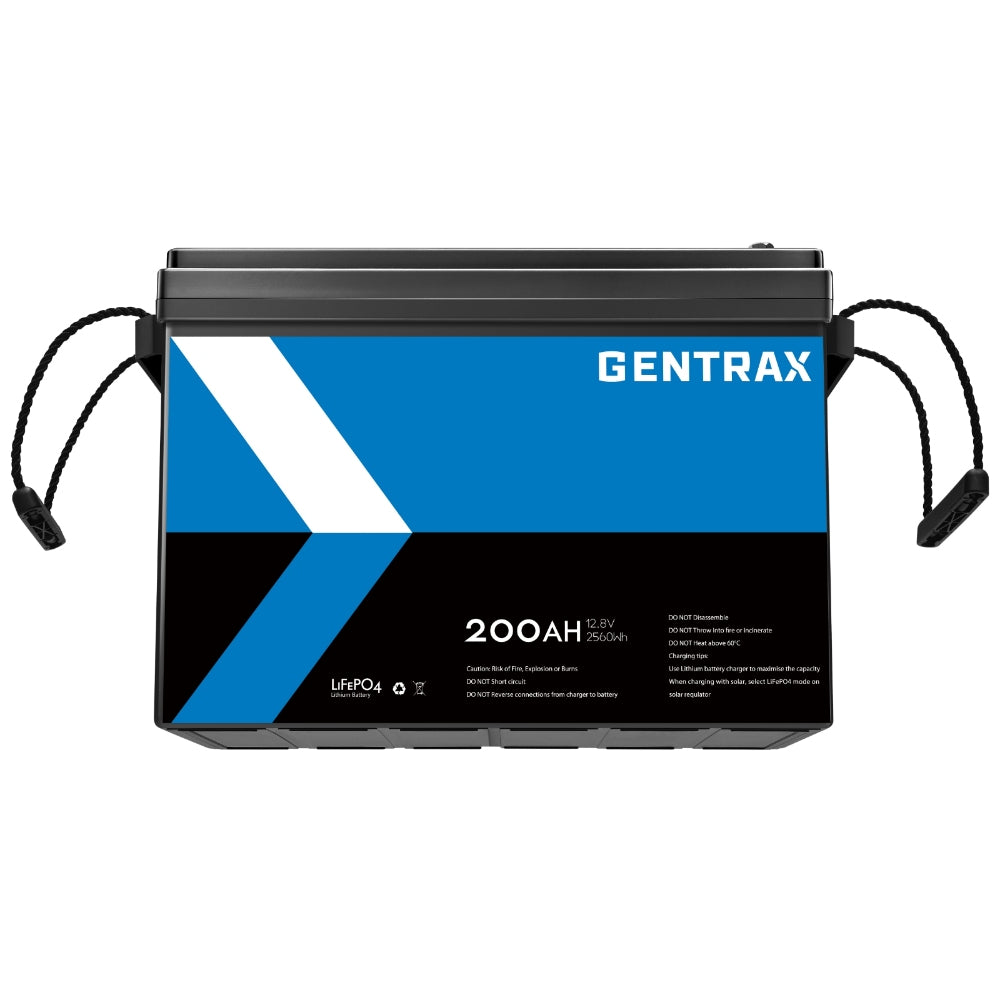

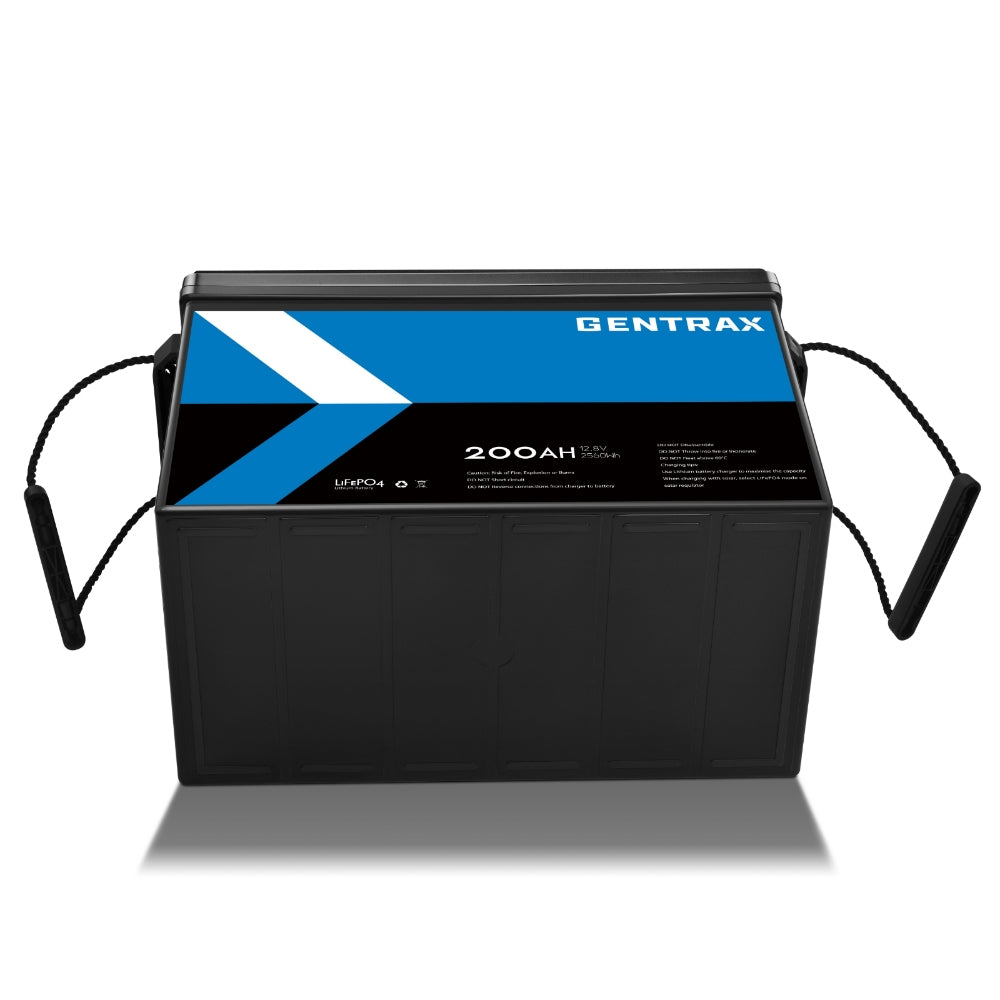

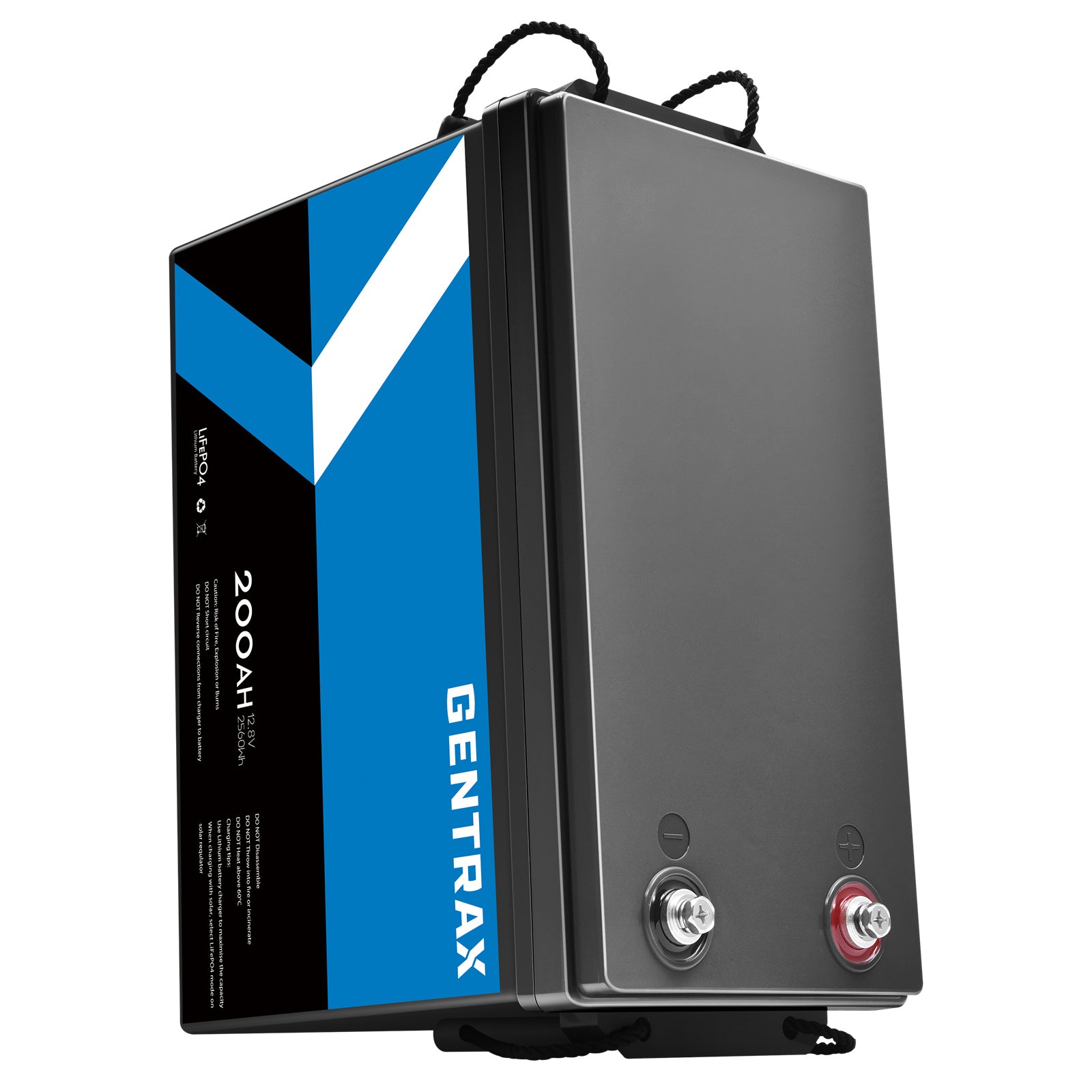

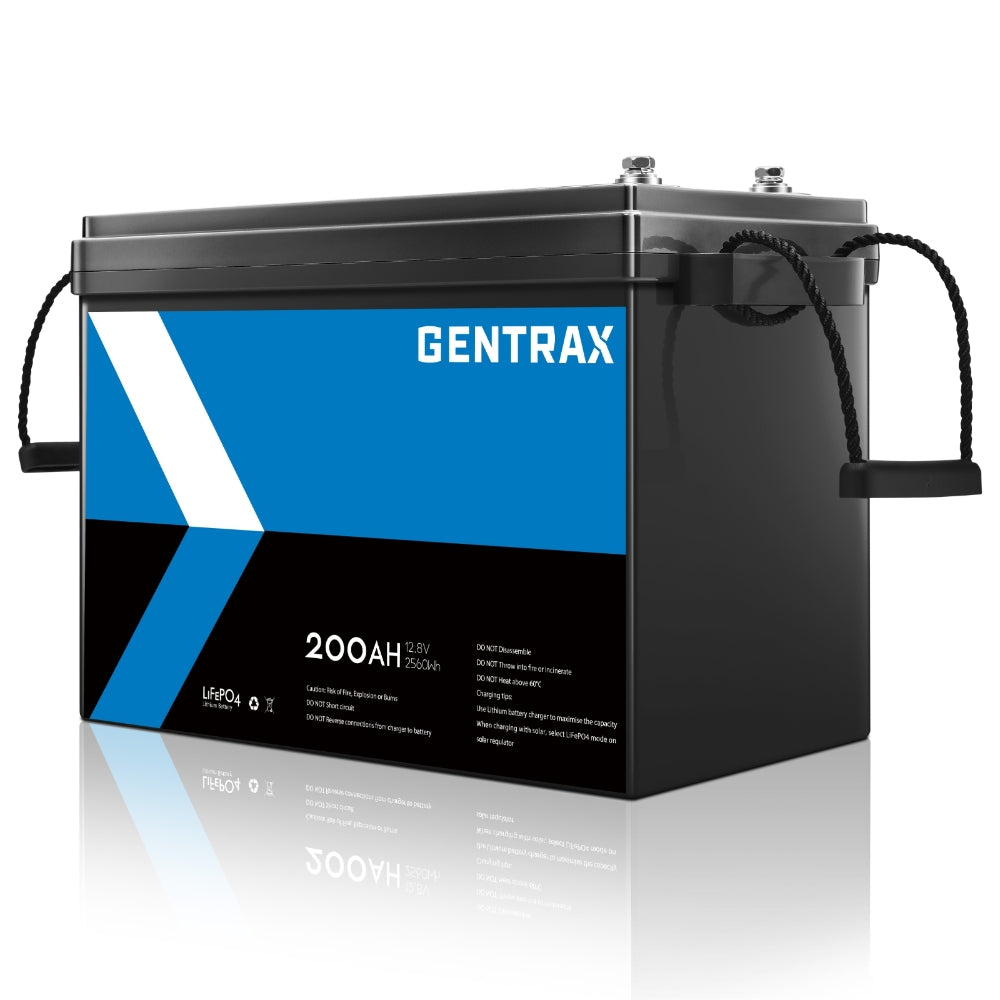

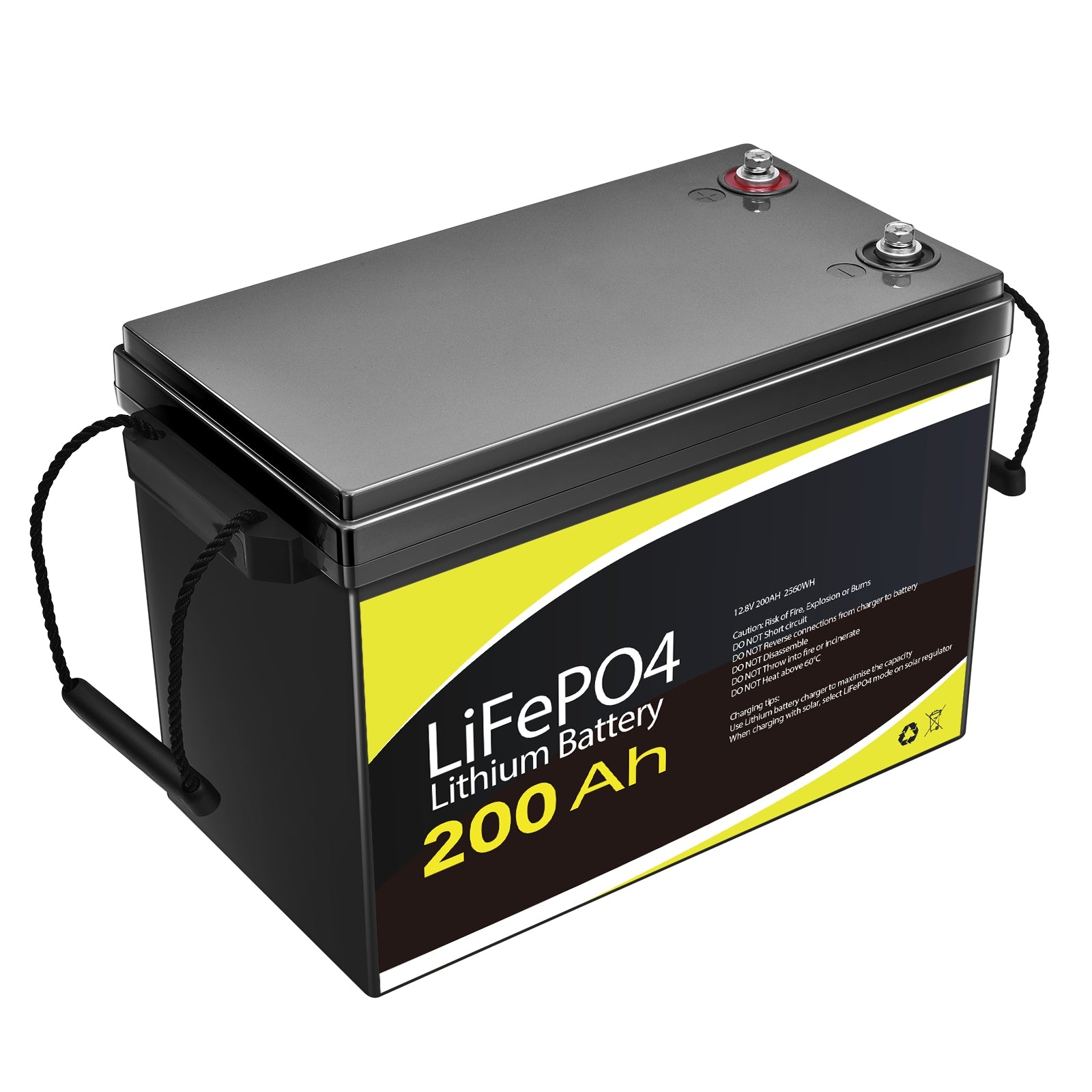

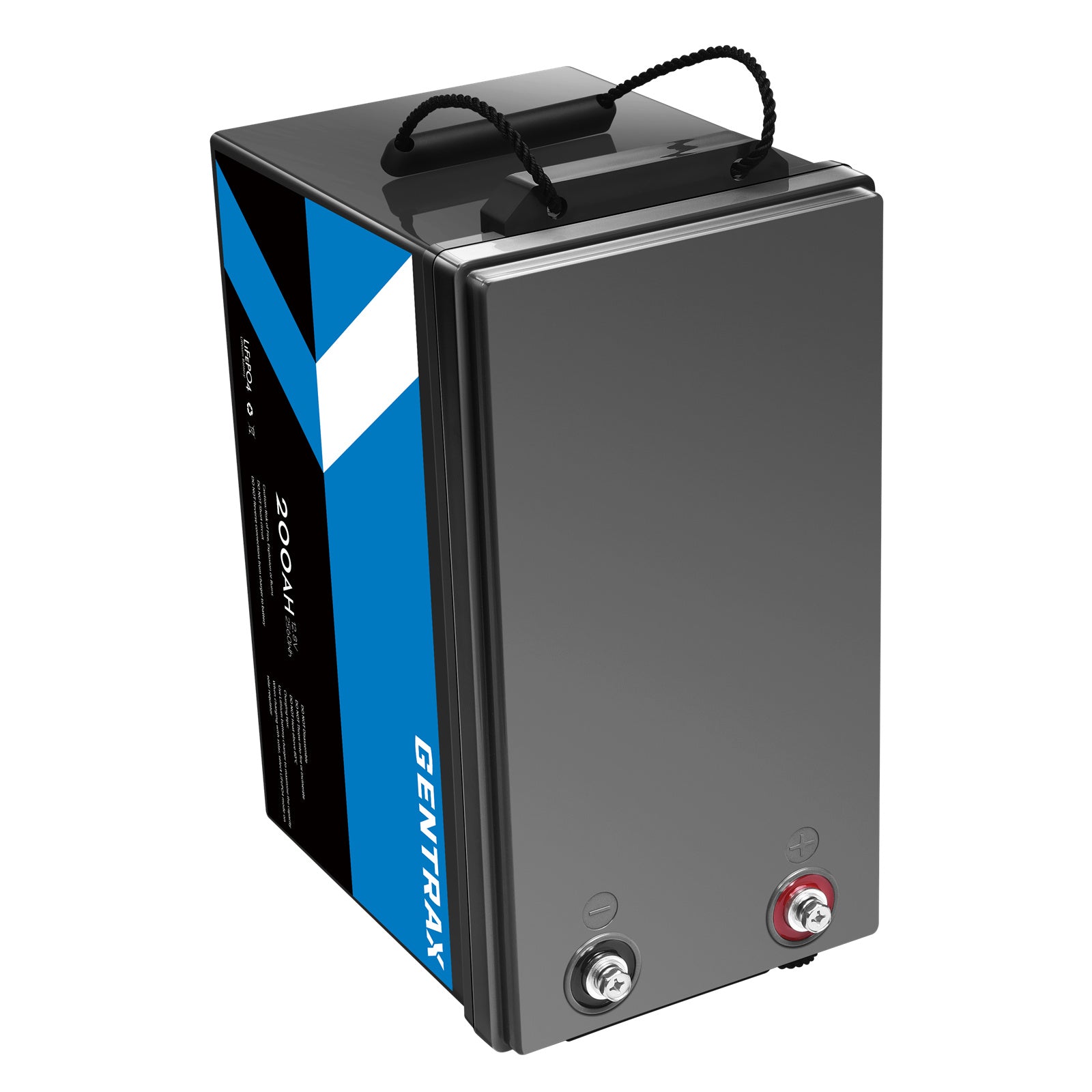

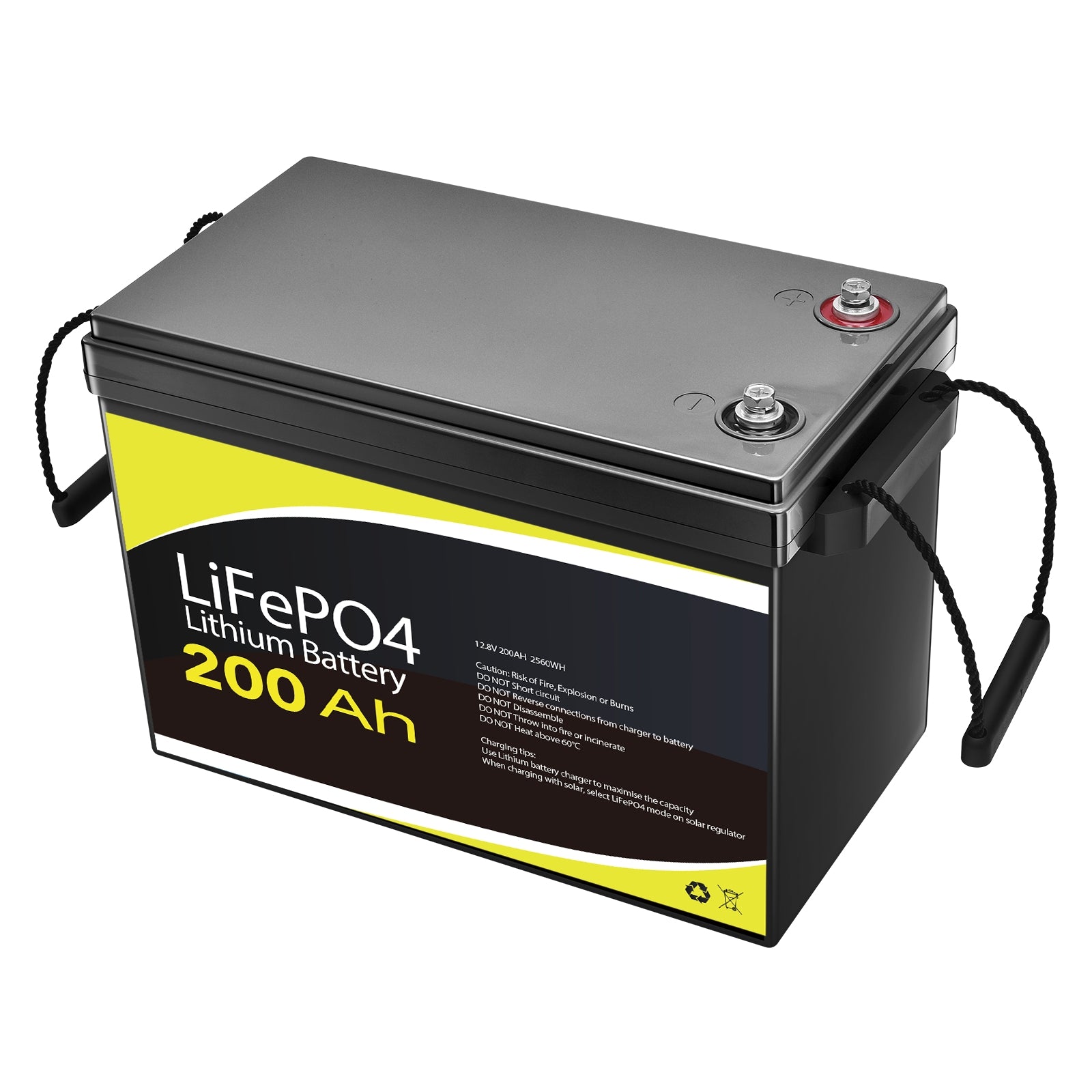

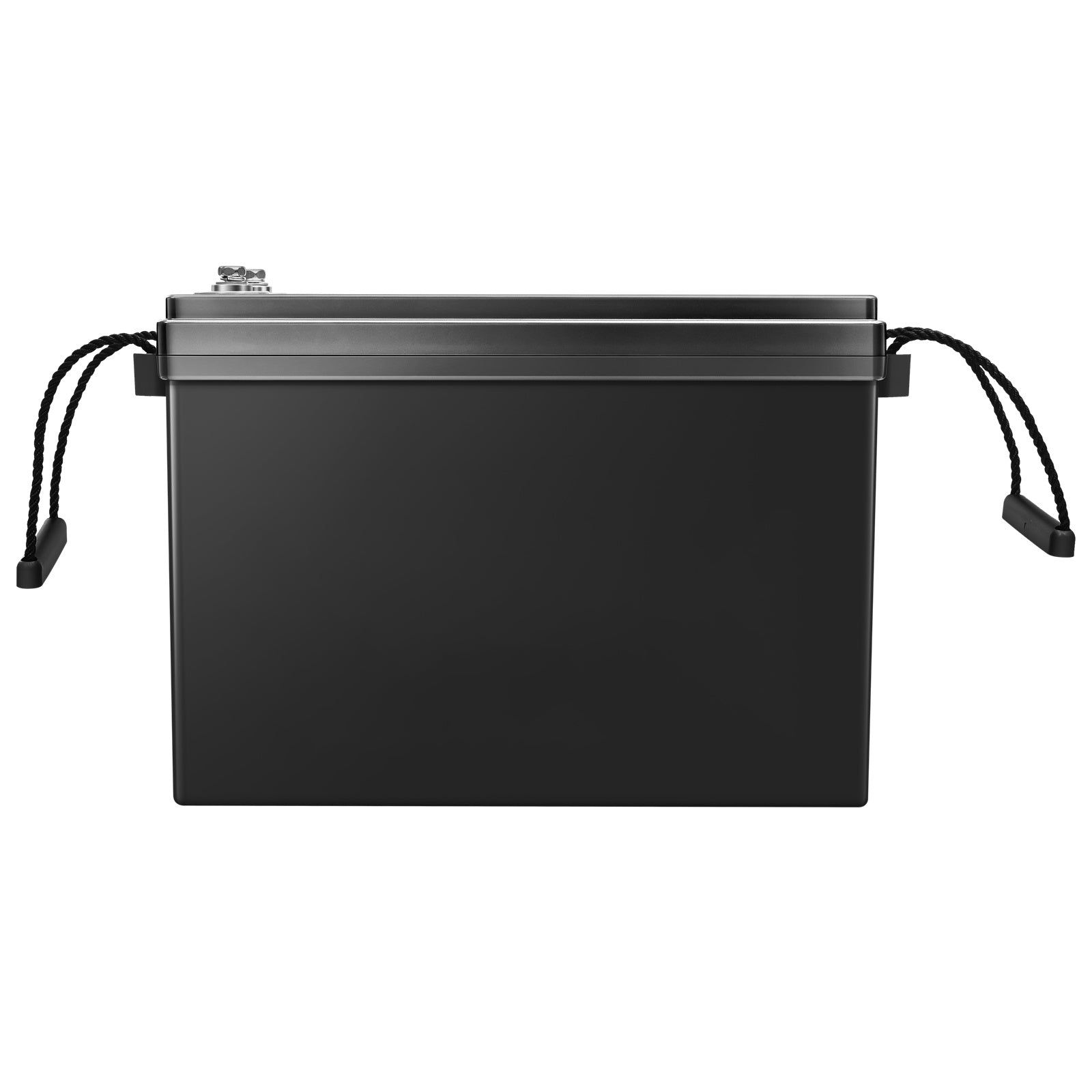

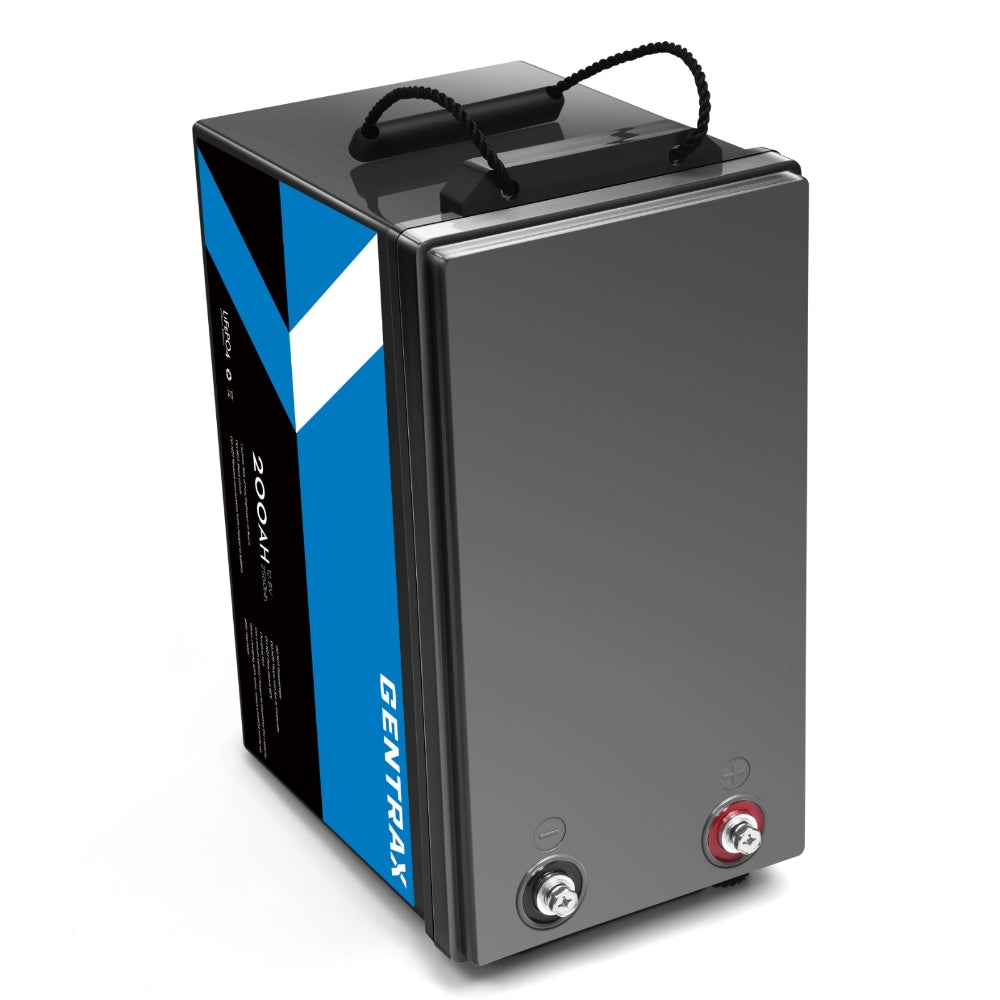

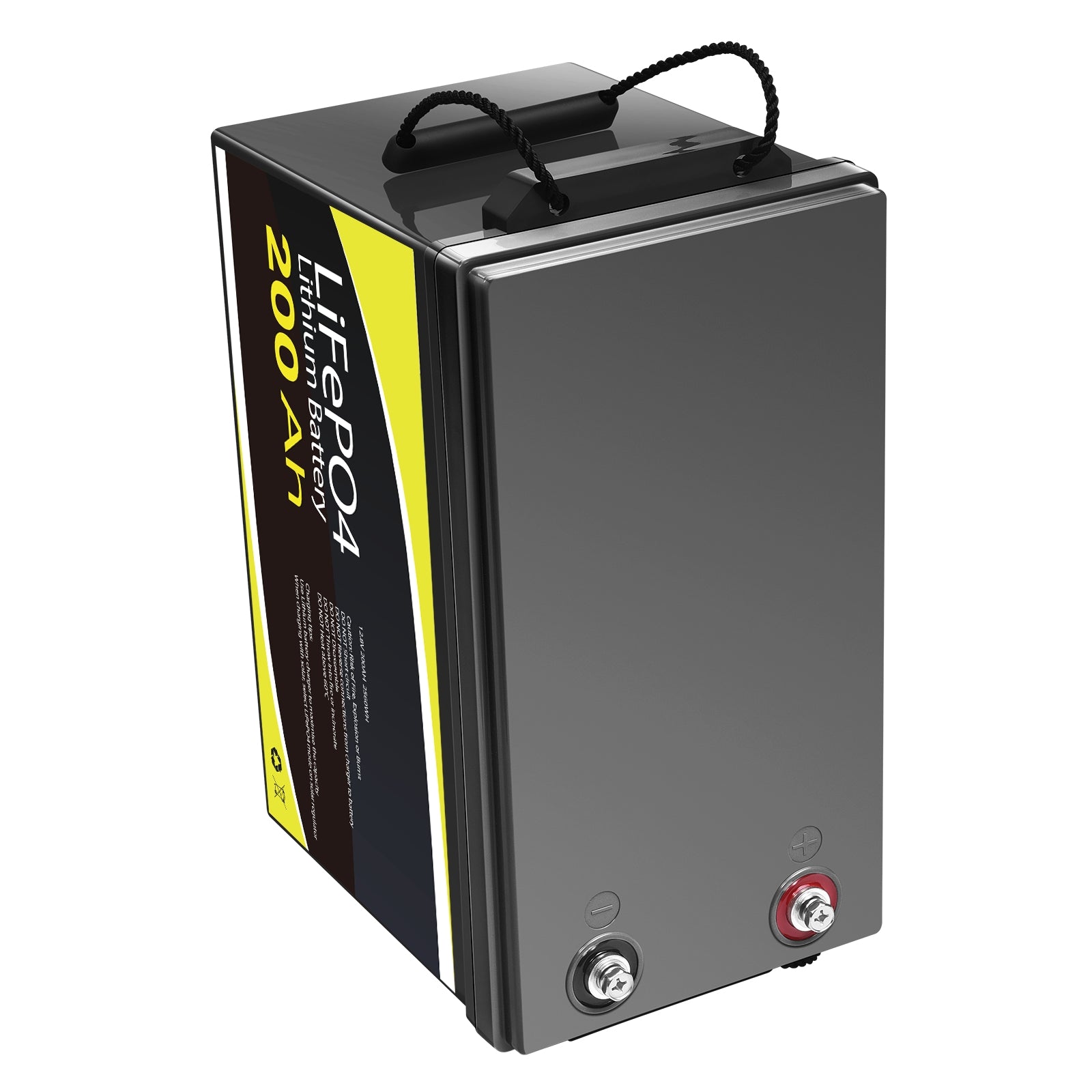

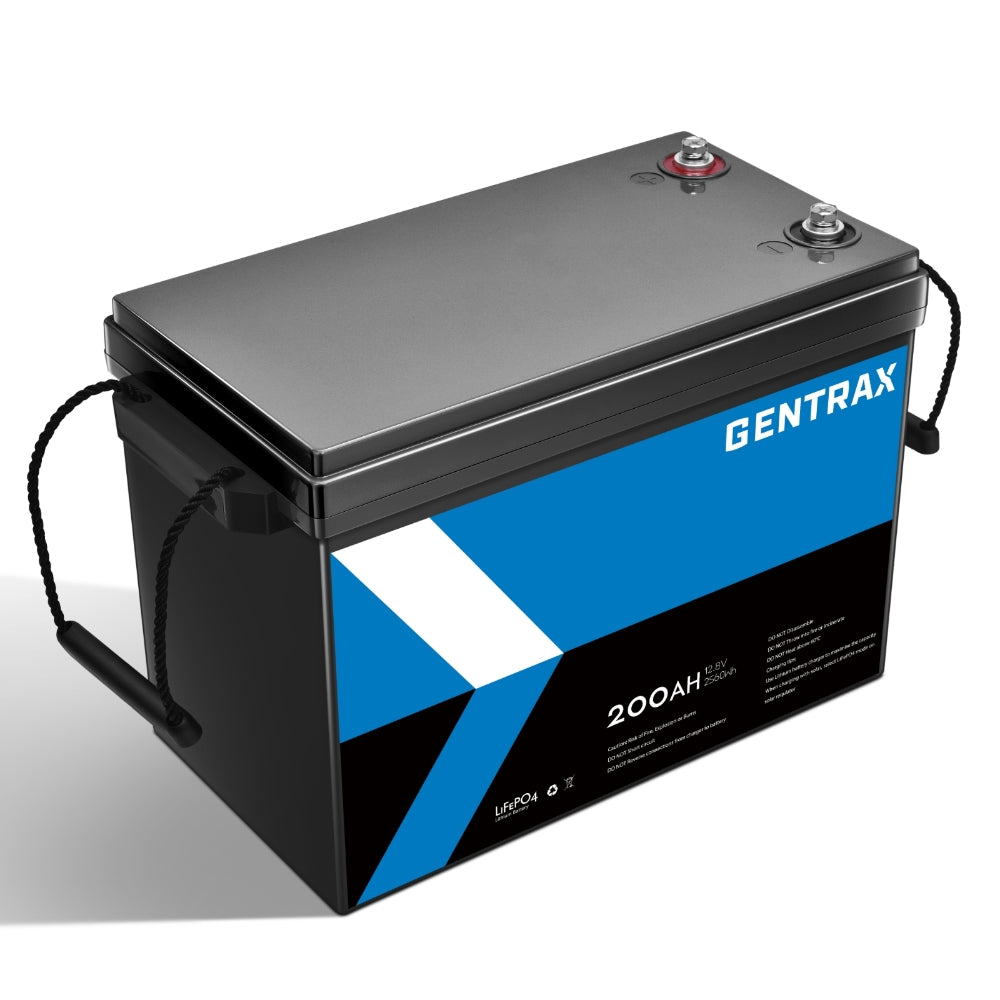

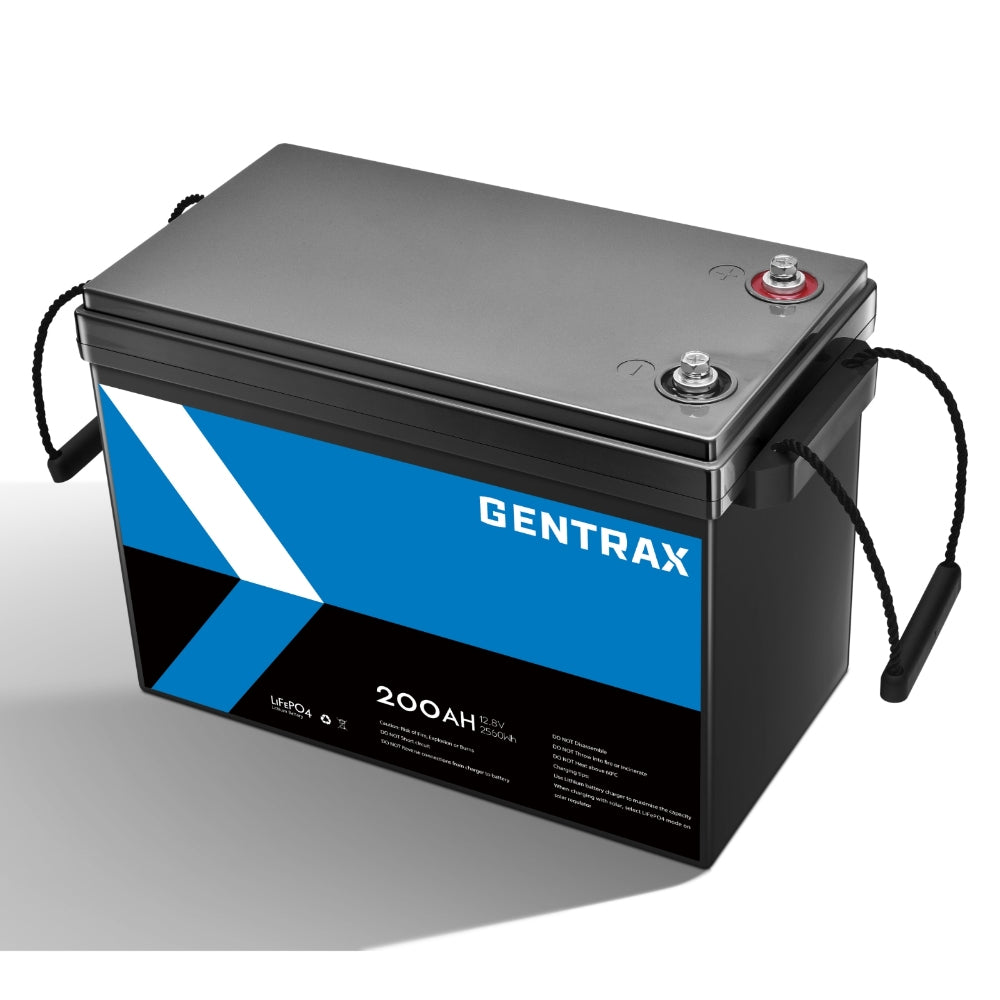

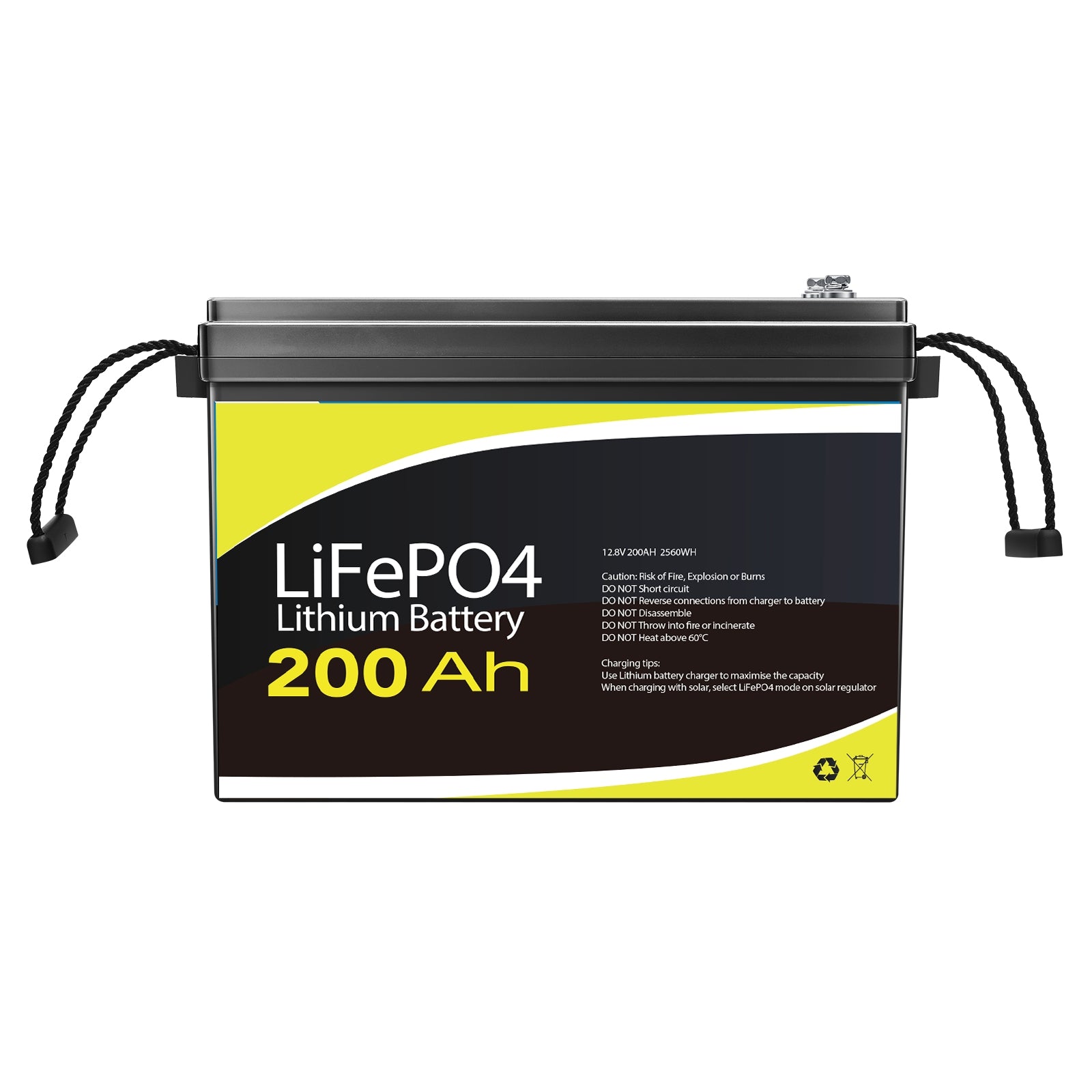

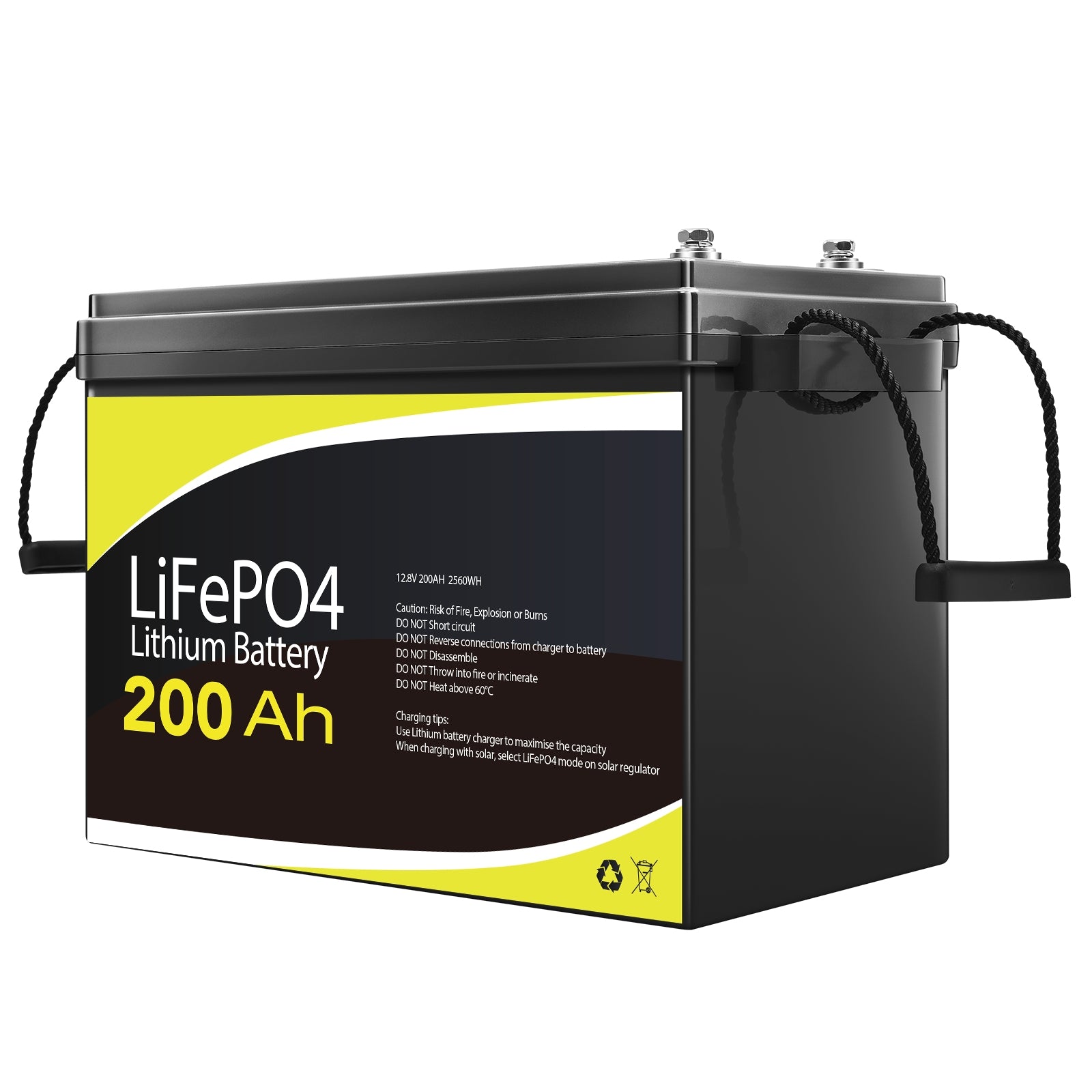

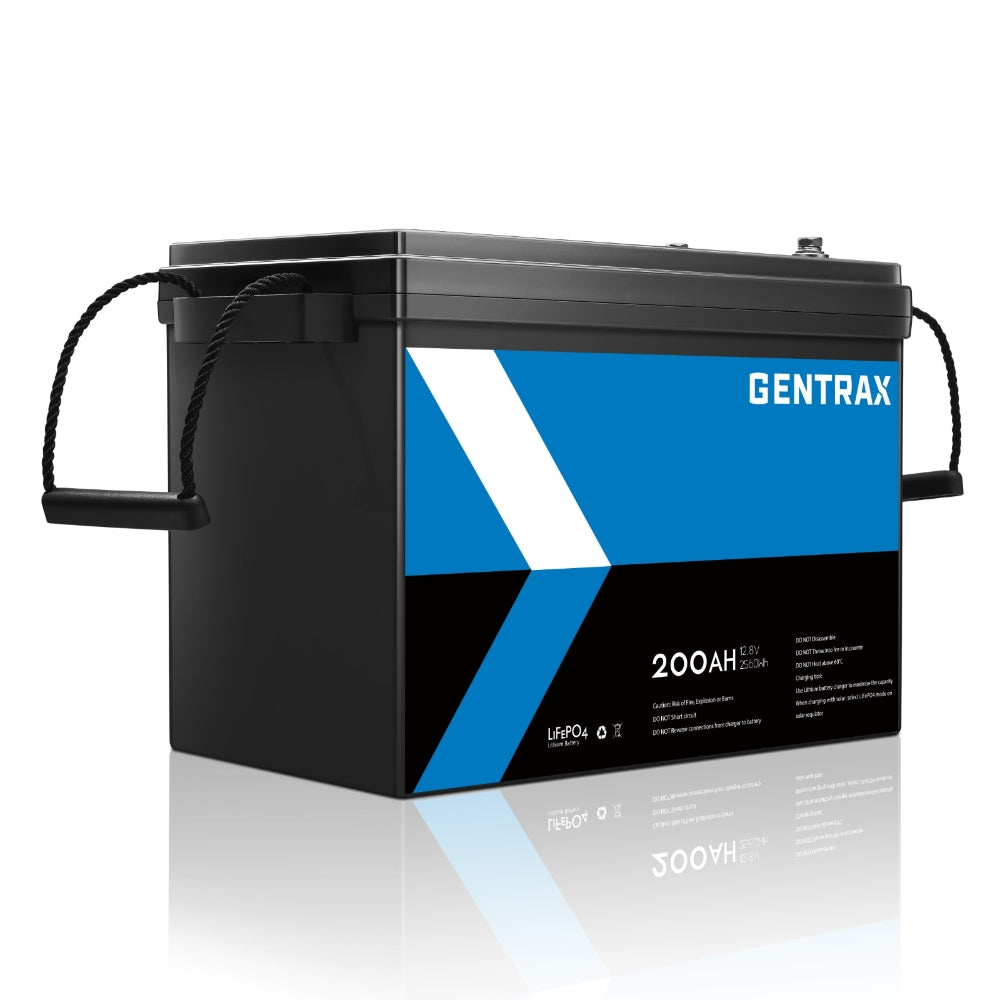

Gentrax 12V 200Ah LiFePO4 Battery
About
Meet our Gentrax LiFePO4 Battery. Created for excellent performance and enduring stability, our latest range of power packs is the ideal partner for all your outdoor and household power requirements.
Small size, mighty power
Get the most out of your battery with 100% real capacity. Our LiFePO4 battery pack may be smaller and lighter, but it packs a punch for maximum use. It's the perfect choice for setups with limited spaces!
Versatile power for every situation
Whether you're camping or facing a power outage, our Gentrax Battery is ready to keep your essential appliances running for hours, providing a simple power source for various applications.
Transform your energy experience
Tested for stability and consistency, our lithium iron phosphate batteries deliver maximum efficiency with every use. Suitable for high-load working conditions or long-term stable power supply requirements, it revolutionizes your energy experience with grid-quality power you can take anywhere.
Safety-focused
Prioritizing safety, our Gentrax LiFePO4 battery uses advanced battery technology, meeting industry standards for ultimate user safety. This reduces the risk of overheating and burning, making it perfect for both new and experienced battery users.
Enhance Battery Performance with the Victron Charger
Pair our Gentrax LiFePo4 battery with the Victron Smart Charger for optimal charging and easy monitoring. With an exclusive app for real-time battery capacity and operating status tracking, you’re in for easy, effortless battery management.
SPECIFICATIONS
| Brand | Gentrax |
| Nominal Voltage: | 12.8V |
| Nominal Capacity: | 200Ah |
| Charging Voltage: | 14.2-14.6v |
| Rated Energy: | 2560Wh |
| Standard Charging Current: | 50A |
| Max. Charging Current: | 100A |
| Rated Discharge Current: | 100A |
| Max. Discharge Current: | 100A |
| Max. Discharge Current 5 sec: | 200A |
| Approx Life Cycles: | 3000 |
| Absorption Voltage: | 14.2-14.6v |
| Float Voltage: | 13.6V |
| Overcharge Protection: | 14.6V |
| Overcharge Recovery: | 14.2V |
| Overdischarge Protection: | 11.2V |
| Overdischarge Recovery: | 10.6V |
| Cell Grouping: | 4S2P |
| Working Temperature Range: | Charge: 0°C to 45°C | Discharge: -25°C to 65°C |
| Storage Temperature: | -10℃ to 50℃ |
| Case Material: | ABS Plastic |
| Parallel Connection: | Yes, max 4 batteries |
| Series Connection: | No |
| Warranty in Years: | 2 |

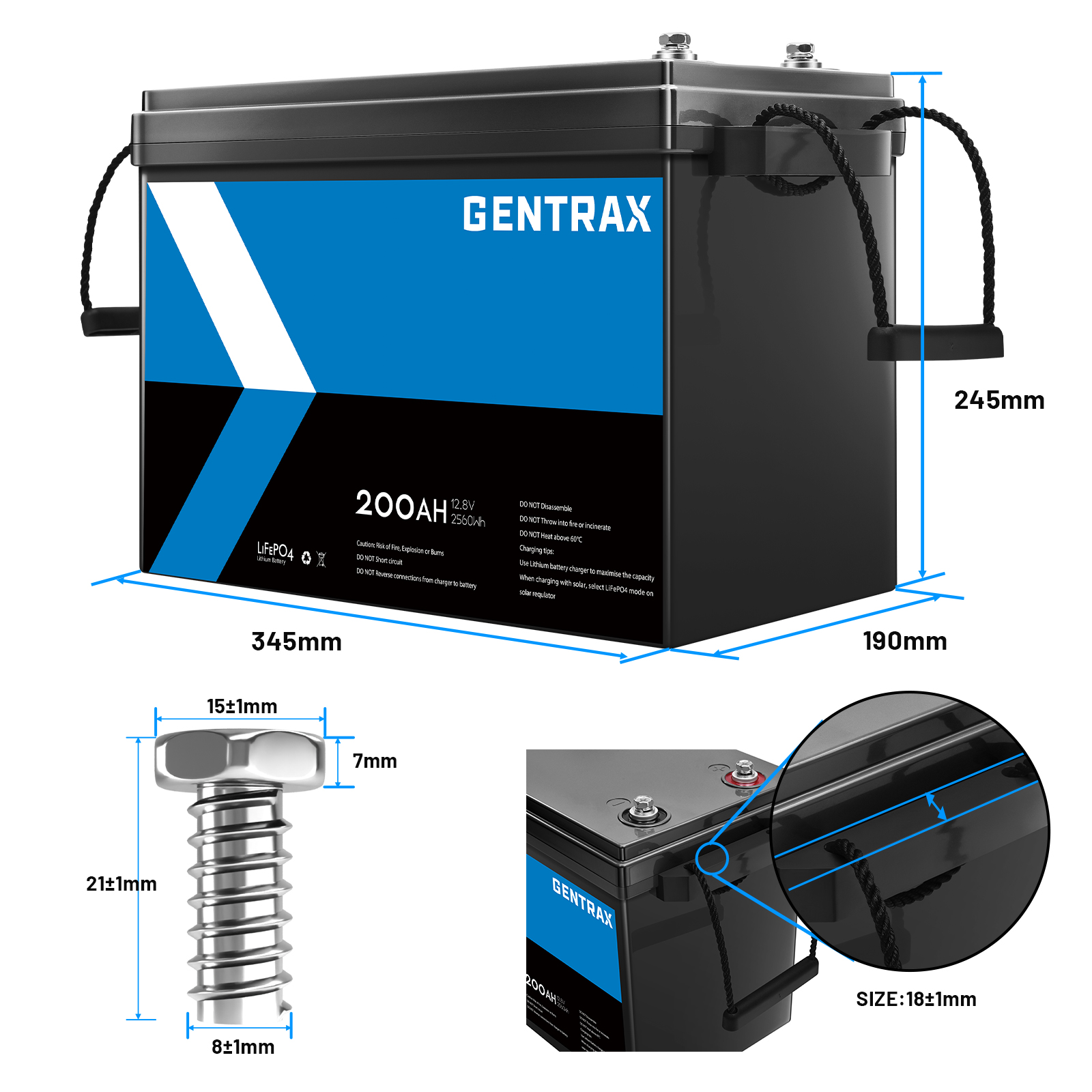

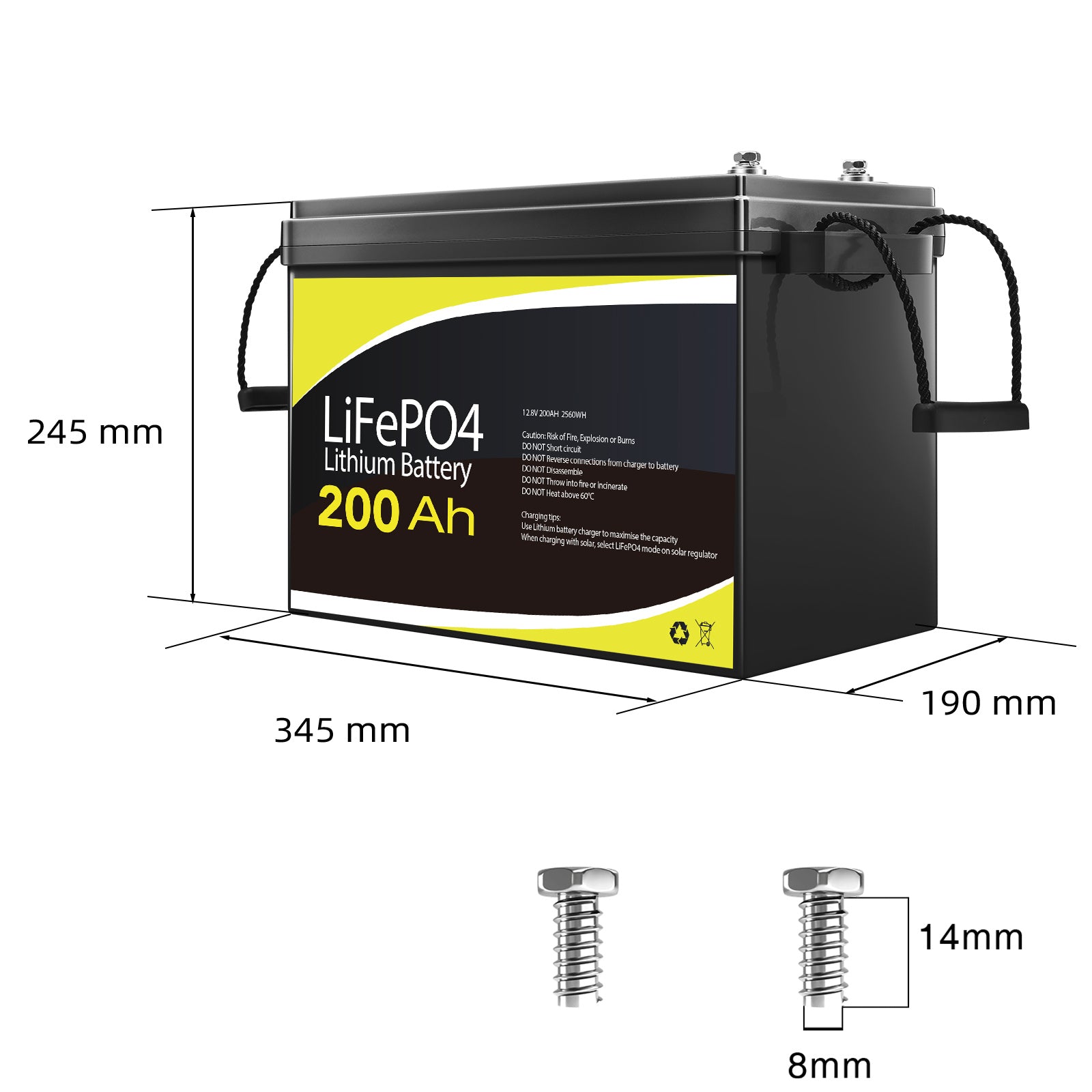

DIMENSIONS & WEIGHT
| Dimensions: | 345(L) x 193.5(W) x 245(H)mm |
| Package Size: | 422(L) x 242(W) x 305(H)mm |

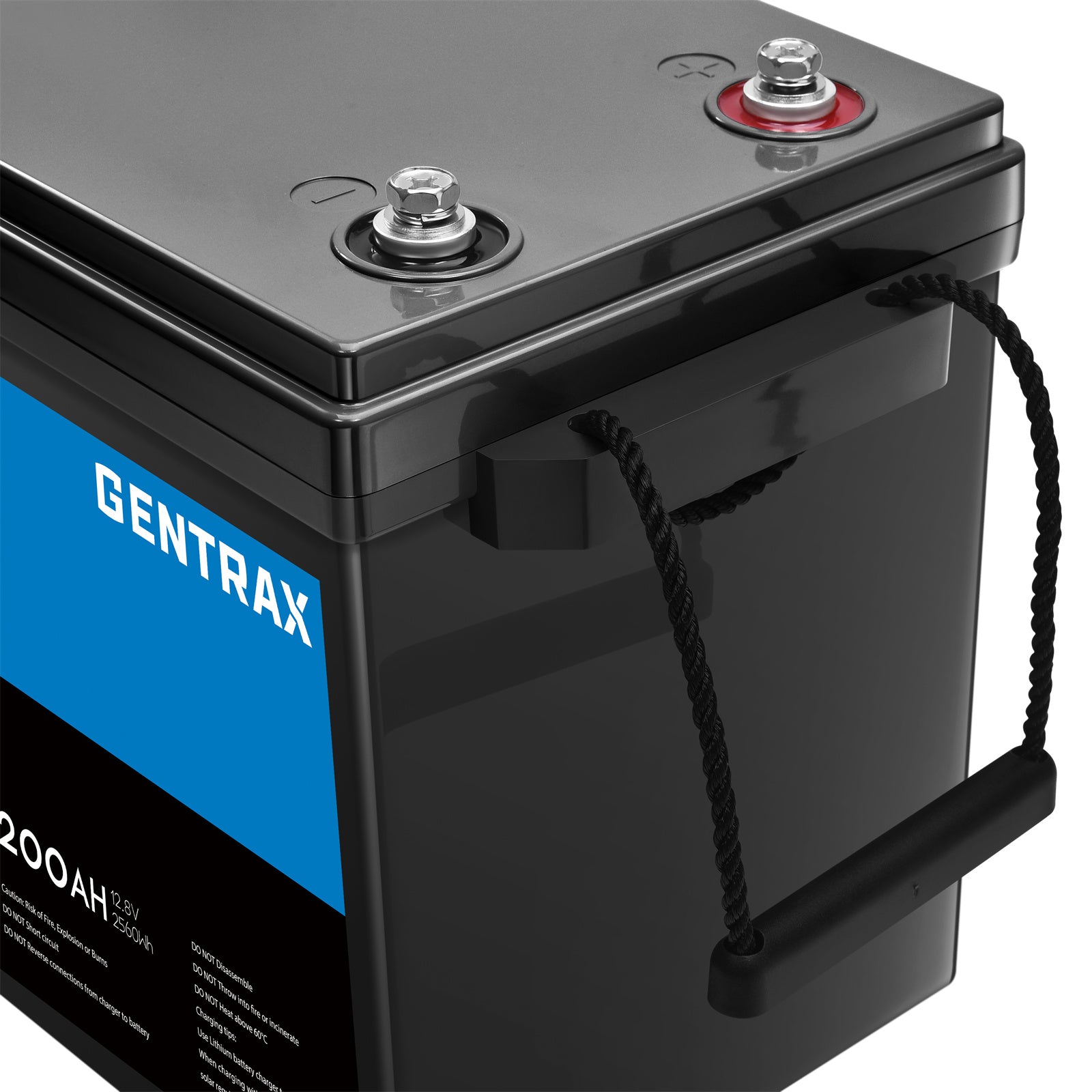

| Handle Width: | 18±1mm |

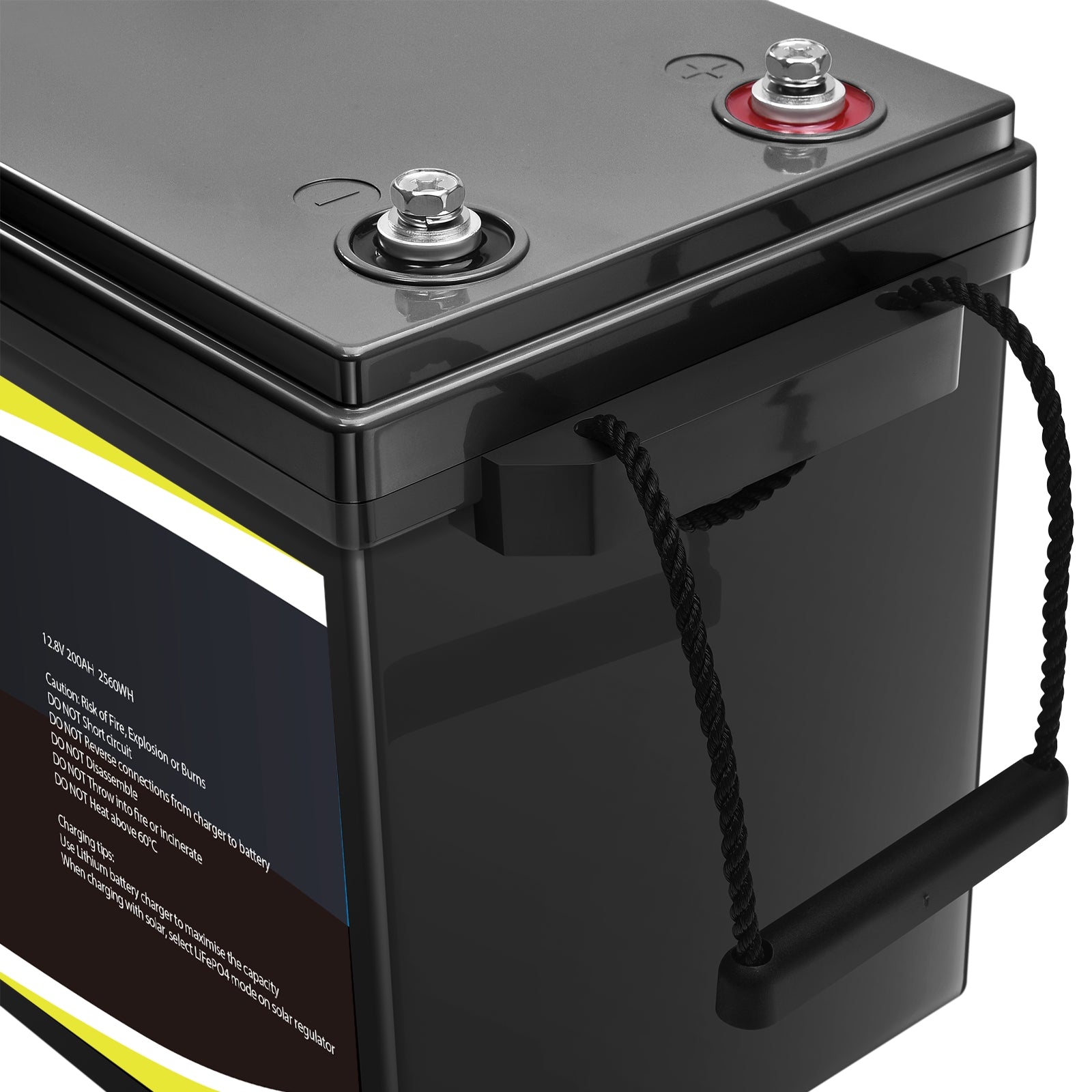

| Bolt Height: | Total 21±1mm Upper End 7mm |
| Bolt Diameter: | Bottom 8±1mm Top 15±1mm |
| Weight: | 19kgs |

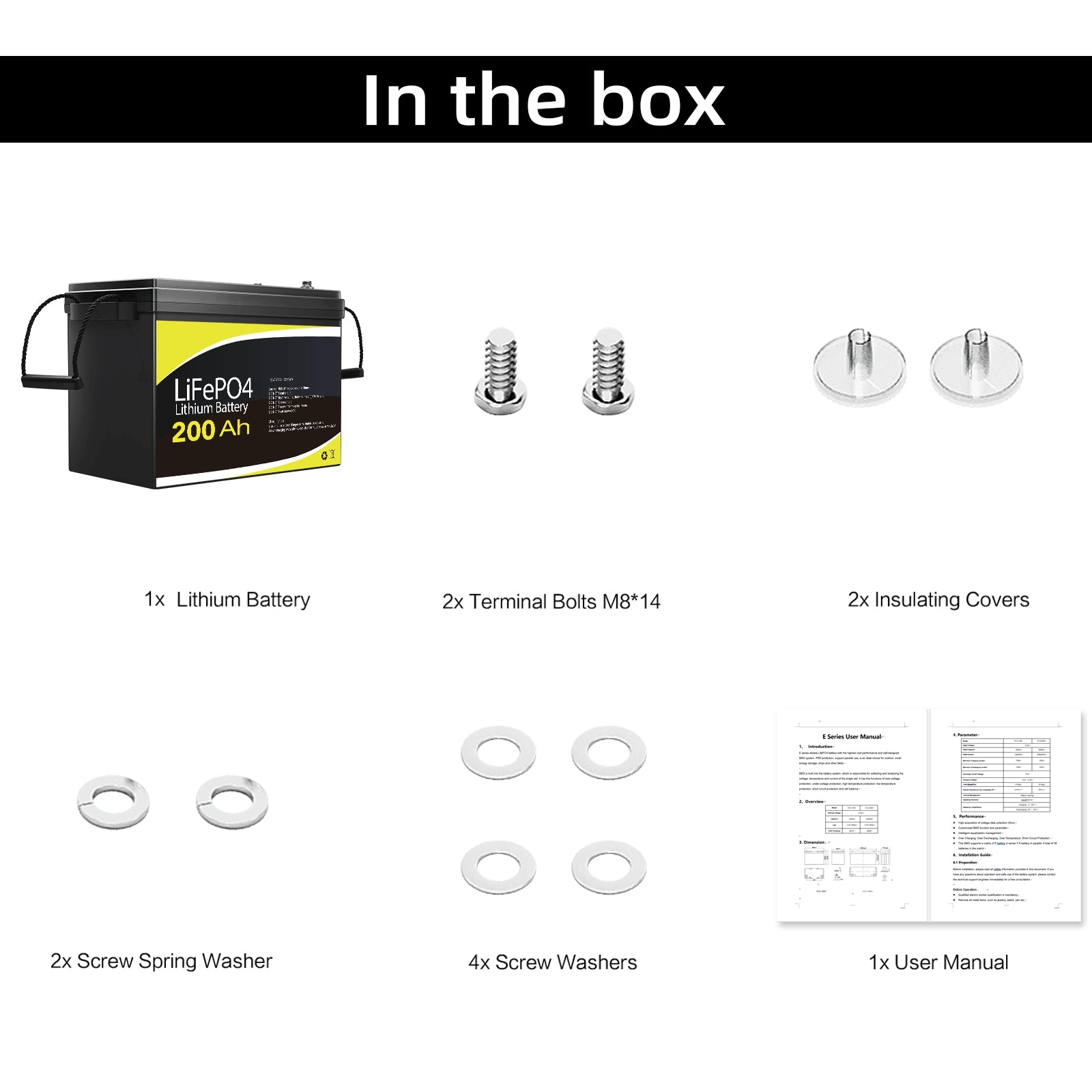

WHAT'S IN THE BOX
| 1 x | Lithium Battery |
